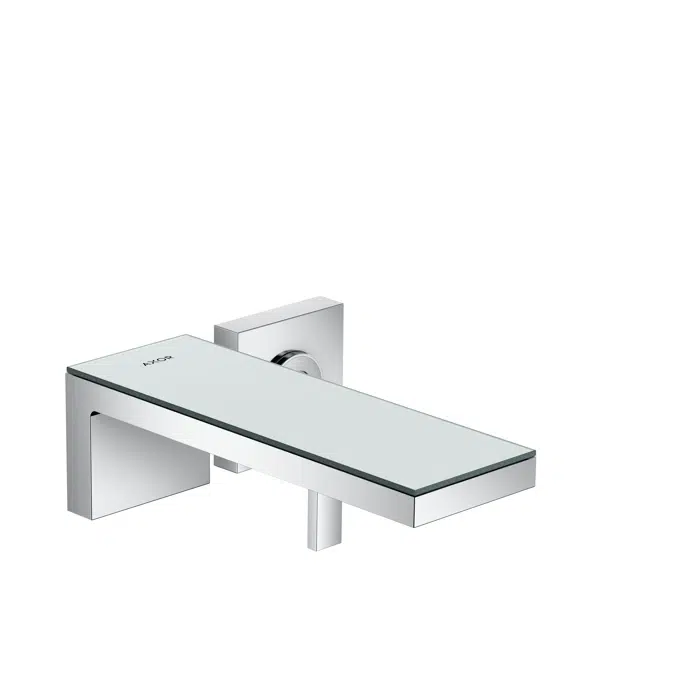

AXOR MyEdition Single lever basin mixer for concealed installation wall-mounted with spout 221 mm

AXOR MyEdition Single lever basin mixer for concealed installation wall-mounted with spout 221 mm

AXOR MyEdition Single lever basin mixer for concealed installation wall-mounted with spout 221 mm

AXOR MyEdition Single lever basin mixer for concealed installation wall-mounted with spout 221 mm

Specification

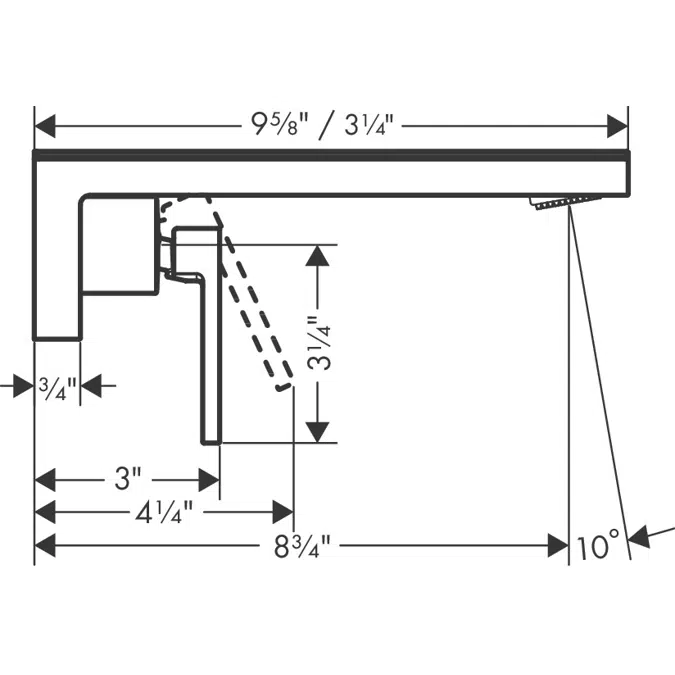

Surfaces: - 47060671 Matt Black/Black Glass - 47060001 Chrome/Mirror Glass - 47060351 Satin Black/Black Glass - 47060361 Satin Black / Brushed Bronze - 47060601 Chrome/Black Glass Specification: • projection: 221 mm • plate of glass made of safety glass • spray type: PowderRain • maximum flow rate at 3 bar: 4,5 l/min • ceramic cartridge • temperature limitation adjustable • with isolated water conduction - without contact with nickel and lead • suitable for continuous flow water heaters • connection type: basic set • connection dimension: DN15 • handle can be positioned on the right or left, depends on the basic set installation

Technical specification

Unique ref.47060USA
Product familyAXOR MyEdition
Product groupBasin mixers
TypeObject (single object)
Date of publishing2023-10-04
Edition number1
Height (mm)4.8
Width (mm)7.13
Depth (mm)9.63

Links

Product urlhttps://www.axor-design.com/articledetail--47060671

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)2.2

Classification

BIMobject CategorySanitary - Taps & Mixers
IFC classificationValve
ETIM CodeEC010862
ETIM NameBath mixing tap
UNSPSC nameSanitary ware
UNSPSC code301815
Uniclass 2015 CodePr_40_20_87
Uniclass 2015 DescriptionTaps and water supply outlet fittings
CSI MasterFormat 2014 Code22 41 39
CSI MasterFormat 2014 TitleResidential Faucets, Supplies, and Trim
OmniClass Number23-31 11 00
OmniClass TitleFaucets
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
