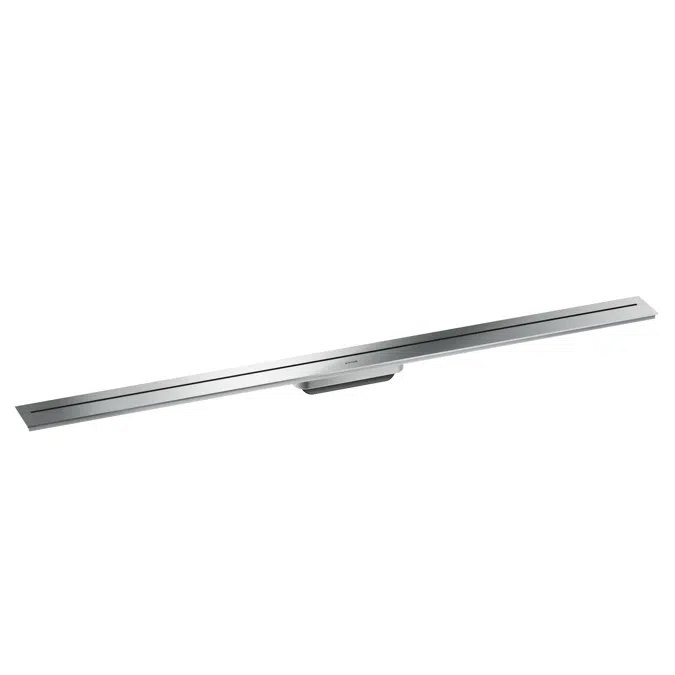

AXOR Drain Finish set shower drain 1200 for wall mounting

Specification

Surfaces:
- 42529000 Chrome
- 42529670 Matt Black
- 42529340 Brushed Black Chrome
- 42529140 Brushed Bronze
- 42529250 Brushed Gold Optic
- 42529300 Polished Red Gold
- 42529310 Brushed Red Gold
- 42529330 Polished Black Chrome
- 42529700 Matt White
- 42529800 Stainless Steel
- 42529820 Brushed Nickel
- 42529950 Brushed Brass
- 42529990 Polished Gold Optic
Specification:
- consists of: design grate, installation set, Dryphon
- mounting type: wall-mounted
- easy to clean surface
- installation set height adjustable by 7-18 mm tile thickness
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 55 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- type of odour seal: mechanical
- Dryphon enables waterless siphon system
- no visible silicone joint
- with integrated slope
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary drainage

Technical specification

Unique ref.42529XXX
Product familyFinish set shower drains
Product groupAXOR Drain
TypeObject (single object)
Date of publishing2023-05-23
Edition number1

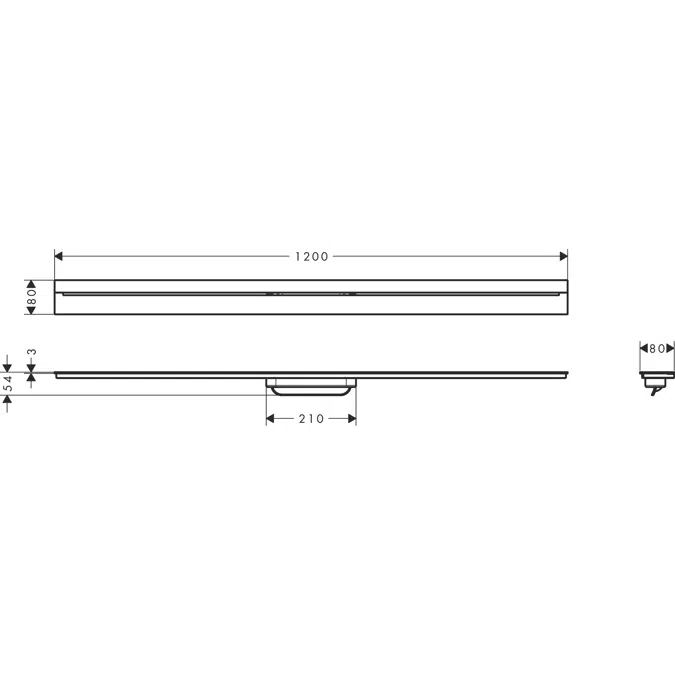

Height (mm)54
Width (mm)80
Depth (mm)1200

Links

Product urlhttps://www.axor-design.com/articledetail--42529000

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)4.22

Classification

BIMobject CategoryPlumbing - Drainage
IFC classificationPipe Fitting
ETIM CodeEC011720
ETIM NameShower drain
UNSPSC namePlumbing adapters
UNSPSC code40141719
Uniclass 2015 CodePr_65_52_25
Uniclass 2015 DescriptionDrainage traps and accessories
CSI MasterFormat 2014 Code22 13 19.13
CSI MasterFormat 2014 TitleSanitary Drains
OmniClass Number23-31 17 29
OmniClass TitleShower Drains
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures
