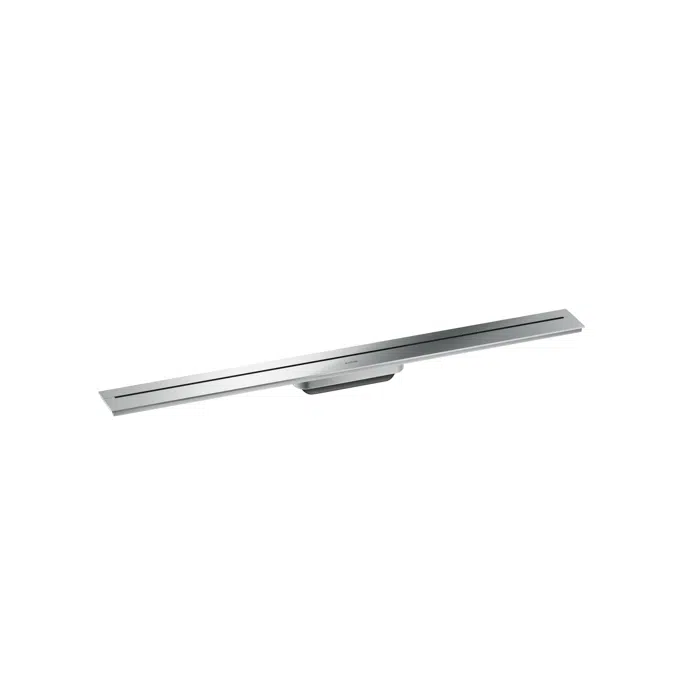

AXOR Drain Finish set shower drain 900 for wall mounting

Specification

Surfaces:
- 42527001 Chrome
- 42527141 Brushed Bronze
- 42527251 Brushed Gold Optic
- 42527341 Brushed Black Chrom
- 42527671 Matt Black
- 42527701 Matt White
- 42527801 Brushed Stainless Steel
- 42527821 Brushed Nickel
- 42527831 Polished Nickel
- 42527951 Brushed Brass
- 42527991 Polished Gold Optic
Specification:
- consists of: design grate, installation set, wall installation flange
- mounting type: wall-mounted
- easy to clean surface
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 53 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- no visible silicone joint
- with integrated slope
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary drainage
- suitable for clamp drain or no hub sleeve installation (parts need to be ordered separately)

Technical specification

Unique ref.42527USA
Product familyFinish set shower drains
Product groupAXOR Drain
TypeObject (single object)
Date of publishing2025-01-21
Edition number1

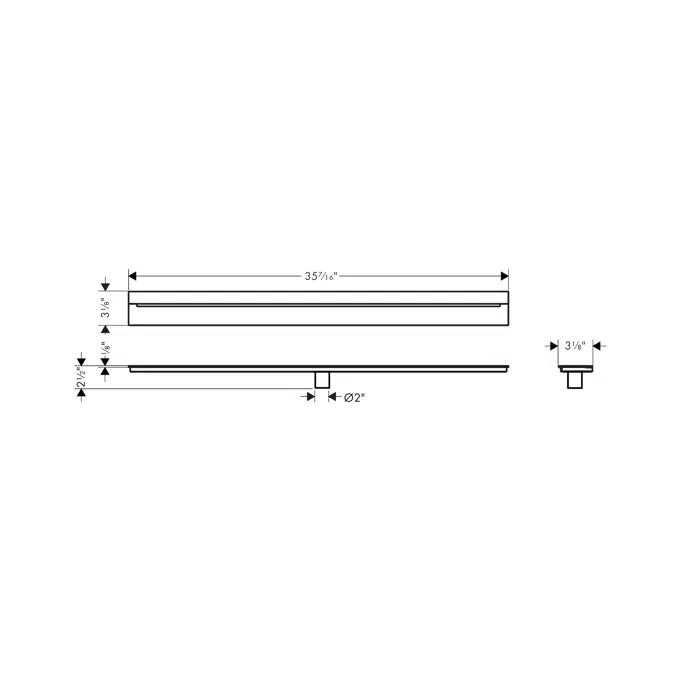

Height (inches)2.5
Width (inches)3.11
Depth (inches)35.43

Links

Product urlhttps://www.axor-design.com/articledetail--42527001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Lbs)5.39

Classification

BIMobject CategoryPlumbing - Drainage
IFC classificationPipe Fitting
ETIM CodeEC011720
ETIM NameShower drain
UNSPSC namePlumbing adapters
UNSPSC code40141719
Uniclass 2015 CodePr_65_52_25
Uniclass 2015 DescriptionDrainage traps and accessories
CSI MasterFormat 2014 Code22 13 19.13
CSI MasterFormat 2014 TitleSanitary Drains
OmniClass Number23-31 17 29
OmniClass TitleShower Drains
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
