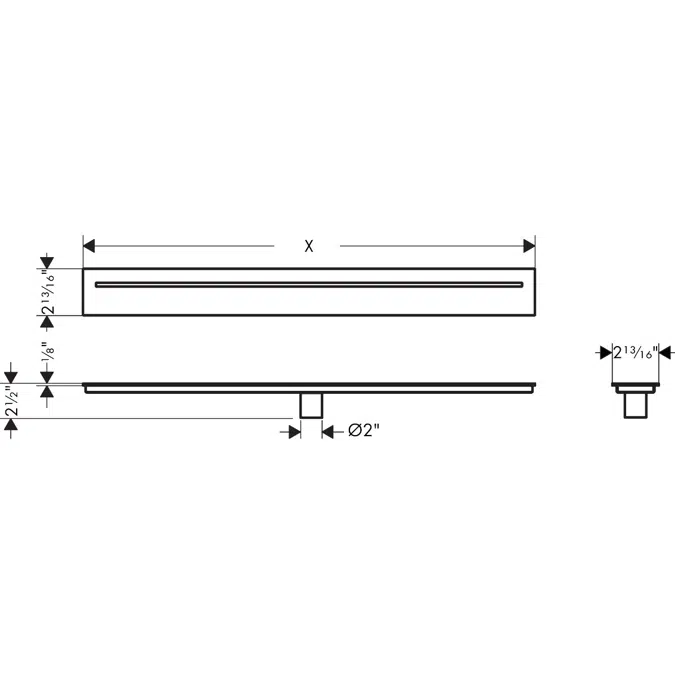

42524CHN AXOR Drain Finish set shower drain 1200

42524CHN AXOR Drain Finish set shower drain 1200

42524CHN AXOR Drain Finish set shower drain 1200

AXOR Drain Finish set shower drain 1200

Specification

Surfaces:
- 42524007 Chrome
- 42524677 Matt Black
- 42524347 Brushed Black Chrome
- 42524707 Matt White
- 42524997 Polished Gold Optic
Specification:
- consists of: design grate, installation set, Dryphon
- mounting type: free in the floor
- easy to clean surface
- installation set height adjustable by 7-18 mm tile thickness
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 53 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- type of odour seal: mechanical
- Dryphon enables waterless siphon system
- no visible silicone joint
- with integrated slope
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary drainage

Technical specification

Unique ref.42524CHN
Product familyFinish set shower drains
Product groupAXOR Drain
TypeObject (single object)
Date of publishing2023-05-23
Edition number1
Height (mm)54
Width (mm)72
Depth (mm)1200

Links

Product urlhttps://www.axor-design.com/articledetail--42524007

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)4.19

Classification

BIMobject CategoryPlumbing - Drainage
IFC classificationPipe Fitting
ETIM CodeEC011720
ETIM NameShower drain
UNSPSC namePlumbing adapters
UNSPSC code40141719
Uniclass 2015 CodePr_65_52_25
Uniclass 2015 DescriptionDrainage traps and accessories
CSI MasterFormat 2014 Code22 13 19.13
CSI MasterFormat 2014 TitleSanitary Drains
OmniClass Number23-31 17 29
OmniClass TitleShower Drains
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

Asia
China
