AXOR Drain Finish set shower drain 1000

Specification

Surfaces:
- 42523007 Chrome
- 42523677 Matt Black
- 42523347 Brushed Black Chrome
- 42523707 Matt White
- 42523997 Polished Gold Optic
Specification:

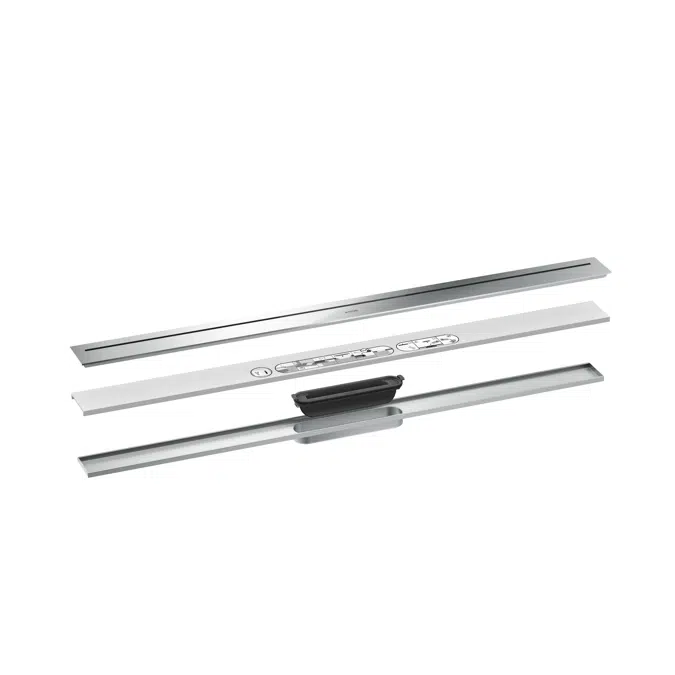

- consists of: design grate, installation set, Dryphon
- mounting type: free in the floor
- easy to clean surface
- installation set height adjustable by 7-18 mm tile thickness
- tile thickness: up to 18 mm
- suitable for any type of tile
- up to 53 l/min drainage capacity
- where to use: new construction, renovation
- grate removal tool allows easy removal of the finish set
- type of odour seal: mechanical
- Dryphon enables waterless siphon system
- no visible silicone joint
- with integrated slope
- grate material: Stainless Steel 304 (1.4301)
- suitable for primary drainage

Technical specification

Unique ref.42523CHN
Product familyFinish set shower drains
Product groupAXOR Drain
TypeObject (single object)
Date of publishing2023-05-23
Edition number1

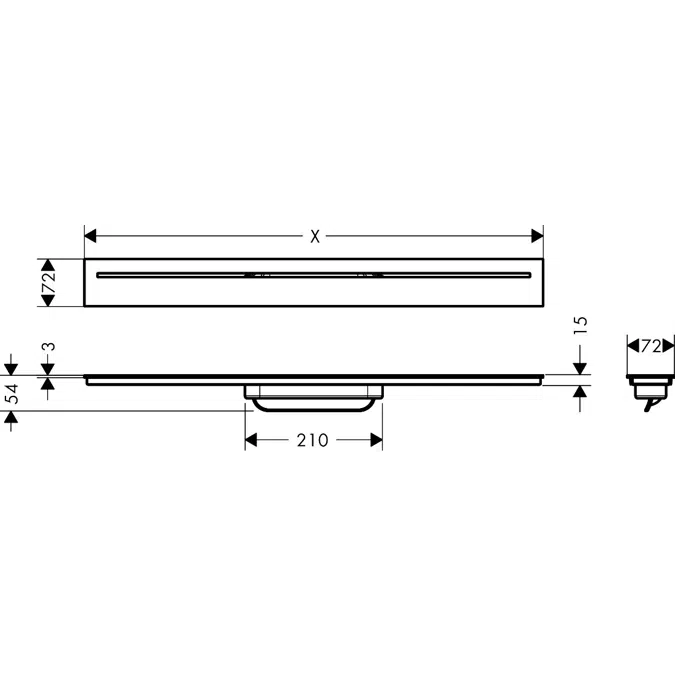

Height (mm)54
Width (mm)72
Depth (mm)1000

Links

Product urlhttps://www.axor-design.com/articledetail--42523007

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)3.58

Classification

BIMobject CategoryPlumbing - Drainage
IFC classificationPipe Fitting
ETIM CodeEC011720
ETIM NameShower drain
UNSPSC namePlumbing adapters
UNSPSC code40141719
Uniclass 2015 CodePr_65_52_25
Uniclass 2015 DescriptionDrainage traps and accessories
CSI MasterFormat 2014 Code22 13 19.13
CSI MasterFormat 2014 TitleSanitary Drains
OmniClass Number23-31 17 29
OmniClass TitleShower Drains
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

Asia
China
