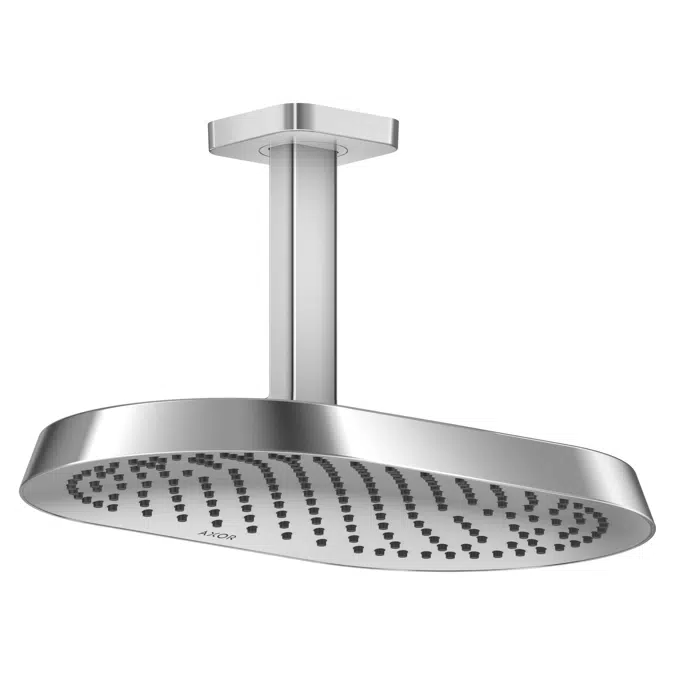

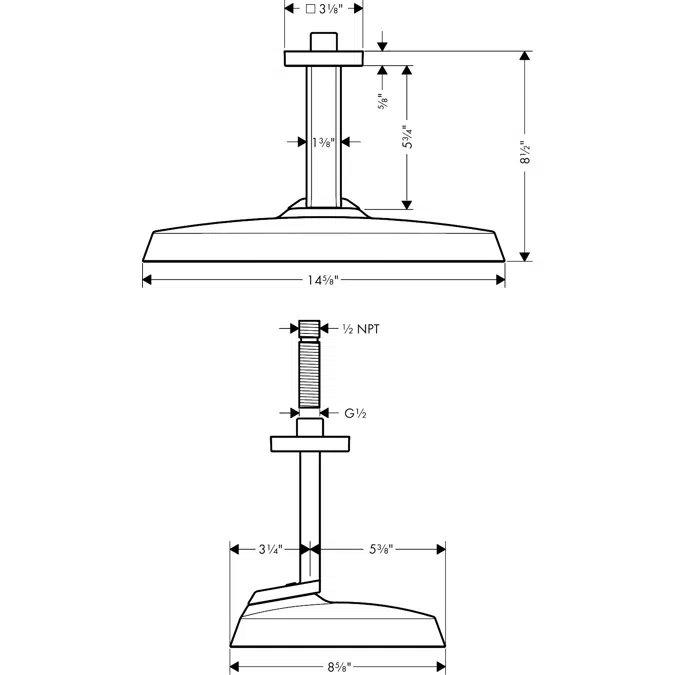

AXOR ShowerSphere Overhead shower 370 1jet 1.75 GPM with ceiling connector

Specification

Surfaces:
- 39762001 Chrome
- 39762141 Brushed Bronze
- 39762251 Brushed Gold Optic
- 39762301 Polished Red Gold
- 39762311 Brushed Red Gold
- 39762311Polished Black Chrome
- 39762341 Brushed Black Chrome
- 39762801 Stainless Steel Optic
- 39762821 Brushed Nickel
- 39762831 Polished Nickel
- 39762951 Brushed Brass
- 39762991 Polished Gold Optic
Specification:
• consists of: overhead shower, ceiling connector
• shower head size: 250 x 160 mm
• spray type: Rain
• FlexPower: nozzles automatically adjust to water pressure by opening and closing
• QuickClean+: avoid limescale deposits thanks to the elasticity of the nozzles
• maximum flow rate at 3 bar: 9,5 l/min
• material spray disc: metal
• overhead shower removable for cleaning
• metal ceilling connector
• ceiling connection length: 145 mm
• installation: ceiling mounting
• connection thread: NPT ½
• suitable for continous flow water heaters

Technical specification

Unique ref.39762USA
Product familyOverhead showers
Product groupAXOR ShowerSphere
TypeObject (single object)
Date of publishing2025-03-19
Edition number1
Height (inches)215
Width (inches)370
Depth (inches)220

Links

Product urlhttps://www.axor-design.com/articledetail--39762001
Installation instructionshttps://www.axor-design.com/articledetail--39762001
Technical descriptionhttps://www.axor-design.com/articledetail--39762001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Lbs)4.49

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
ETIM CodeEC011383
ETIM NameShower head
Uniclass 2015 CodePr_40_20_87_76
Uniclass 2015 DescriptionShower heads
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers

Region availability

North America
Canada
United States
