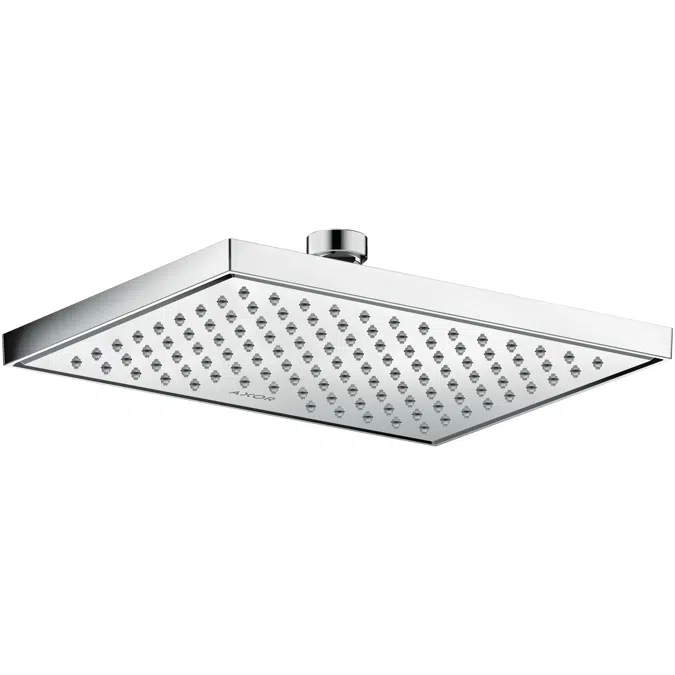

AXOR ShowerSolutions Overhead shower 245/185 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 245/185 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 245/185 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 245/185 1jet 2.5 GPM

Specification

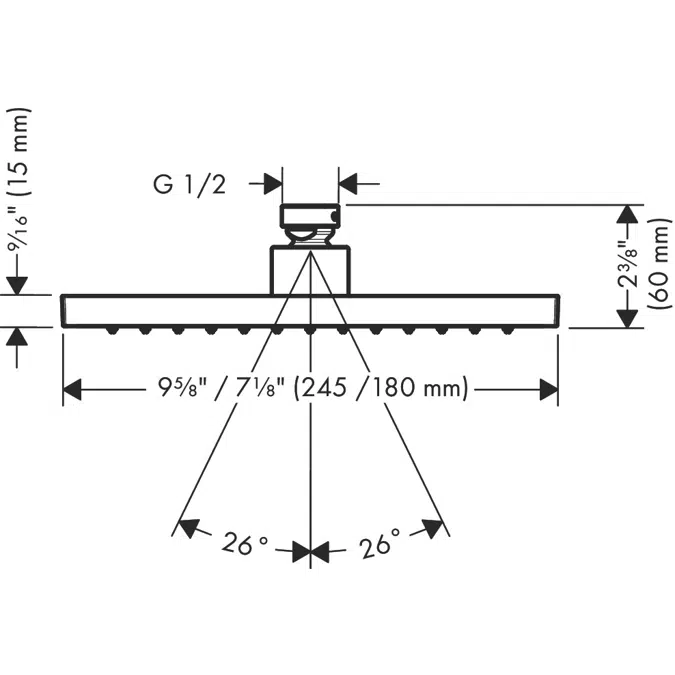

Surfaces: - 35370001 Chrome - 35370671 Matt Black - 35370341 Brushed Black Chrome - 35370331 Polished Black Chrome - 35370991 Polished Gold Optic - 35370251 Brushed Gold Optic - 35370821 Brushed Nickel Specification: • shower head size: 245 x 185 mm • spray type: Rain • ball-joint: overhead shower angle adjustable • material spray disc: metal • fully finished matching spray face • maximum flow rate at 3 bar: 9,5 l/min • overhead shower removable for cleaning • installation: ceiling, wall • connection thread G ½ • suitable for continous flow water heaters

Technical specification

Unique ref.35370USA
Product familyAXOR ShowerSolutions
Product groupOverhead showers
TypeObject (single object)
Date of publishing2022-09-28
Edition number1
Height (mm)60
Width (mm)245
Depth (mm)185

Links

Product urlhttps://www.axor-design.com/articledetail--35370001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.9

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
ETIM CodeEC011383
ETIM NameShower head
UNSPSC nameShowers
UNSPSC code30181503
Uniclass 2015 CodePr_40_20_87_76
Uniclass 2015 DescriptionShower heads
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
