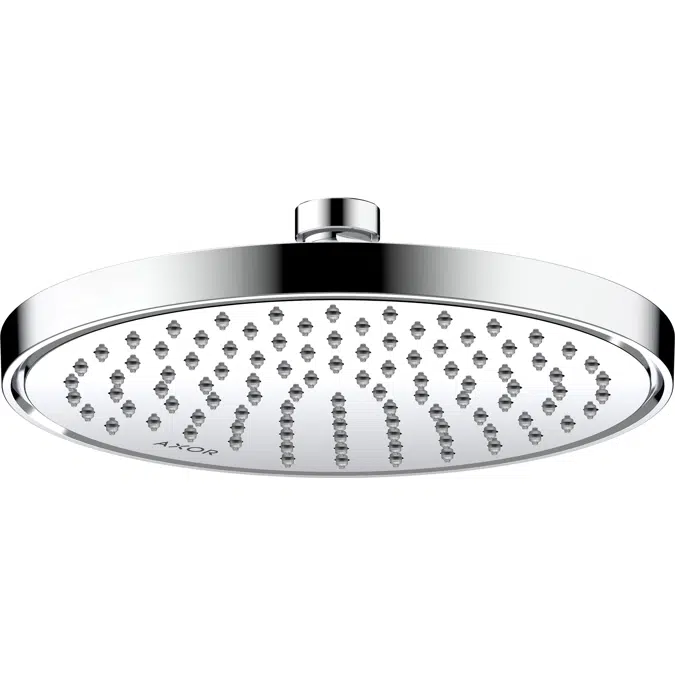

AXOR ShowerSolutions Overhead shower 220 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 220 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 220 1jet 2.5 GPM

AXOR ShowerSolutions Overhead shower 220 1jet 2.5 GPM

Specification

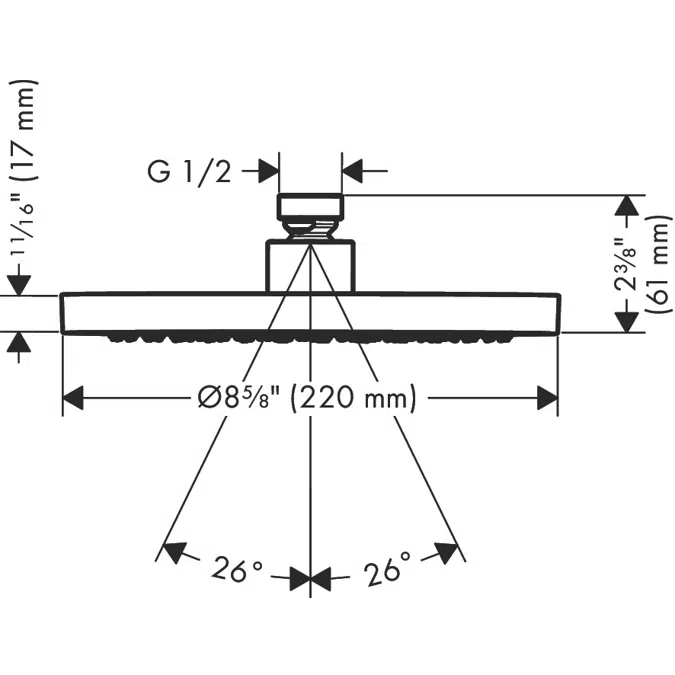

Surfaces: - 35367001 Chrome - 35367671 Matt Black - 35367341 Brushed Black Chrome - 35367251 Brushed Gold Optic - 35367821 Brushed Nickel Specification: • shower head size: 220 mm • spray type: Rain • ball-joint: overhead shower angle adjustable • material spray disc: metal • fully finished matching spray face • maximum flow rate at 3 bar: 9,5 l/min • overhead shower removable for cleaning • installation: ceiling, wall • connection thread G ½ • suitable for continous flow water heaters

Technical specification

Unique ref.35367USA
Product familyAXOR ShowerSolutions
Product groupOverhead showers
TypeObject (single object)
Date of publishing2022-09-28
Edition number1
Height (mm)61
Width (mm)220
Depth (mm)220

Links

Product urlhttps://www.axor-design.com/articledetail--35367001

Related

Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.7

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
ETIM CodeEC011383
ETIM NameShower head
UNSPSC nameShowers
UNSPSC code30181503
Uniclass 2015 CodePr_40_20_87_76
Uniclass 2015 DescriptionShower heads
CSI MasterFormat 2014 Code22 41 23
CSI MasterFormat 2014 TitleResidential Showers
OmniClass Number23-31 17 00
OmniClass TitleShowers
CSI UniFormat II CodeD2010
CSI UniFormat II TitlePlumbing Fixtures

Region availability

North America
Canada
United States
