Beam Clamps – General Fittings - P1386

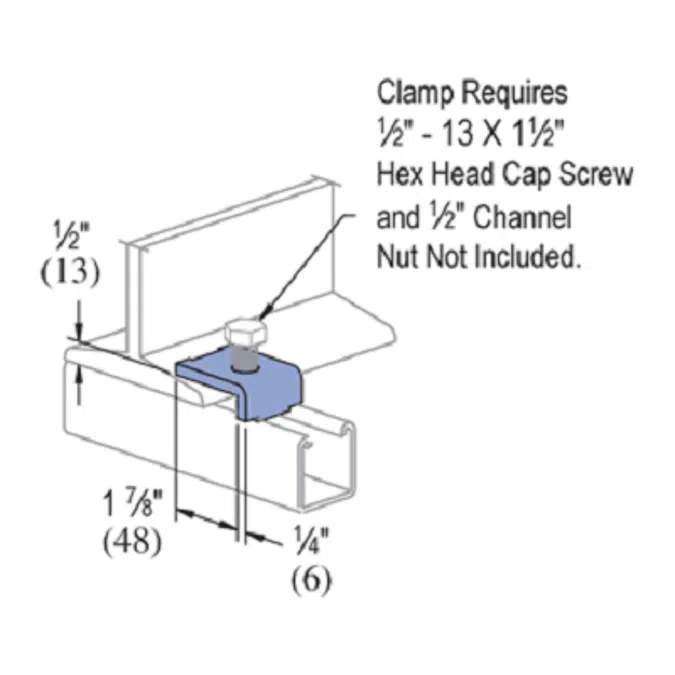

Beam Clamp P1386 beam clamp is designed to be used to clamp Unistrut channel perpendicular to the beam.

Download Atkore BIM Toolbar for free to access 1000+ families without leaving Revit from Autodesk App Store:
https://apps.autodesk.com/RVT/en/Detail/Index?id=9023217157654921583&appLang=en&os=Win64&autostart=true

or from our BIM website:
http://atkore.com/bim

Technical specification

Unique ref.P1386_Beam-Clamps-General_Fittings
Product familyUnistrut
Product groupGeneral Fittings
TypeObject (single object)
Date of publishing2022-02-11
Edition number1

Links

Product urlhttps://www.atkore.com/products/strut-and-fittings/unistrut/1-58-strut-and-fittings/beam-clamps/p1386
Instruction videohttps://youtu.be/f5ePKpoADg4
Technical descriptionhttps://ideadigitalasset.com/DAMRoot/Original/10033/11163_P1386.pdf

Related

Material mainCarbon Steel
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryElectrical - Distribution
IFC classificationStructural Member
Uniclass 2015 CodeSs_20_10_75
Uniclass 2015 DescriptionStructural framing systems
CSI MasterFormat 2014 Code05 10 00
CSI MasterFormat 2014 TitleStructural Metal Framing
OmniClass Number23-13 35 00
OmniClass TitleFraming Products
