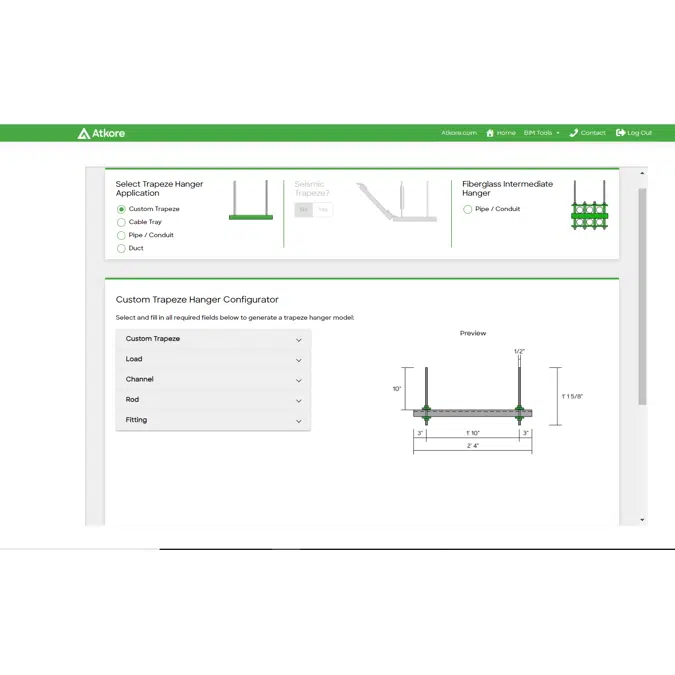

Atkore Hanger Configurator is a free online tool made to simplify the design and configuration of trapeze hangers, the tool provides a dynamic preview, and it creates a downloadable Revit family and populates a BOM instantly for your trapeze hangers
Step 1: go to Atkore.com/bim
Step 2: login or register for free
Step 3: customize your hanger
Step 4: get your BOM and Revit family with one click!
Atkore Hanger Configurator saves time customizing the design of trapeze for different applications such as cable tray, pipe, conduit and duct hangers, it also includes a variety of strut channel sizes to build the trapeze hangers
For any questions or requests contact atkoretoolbar@atkore.com
