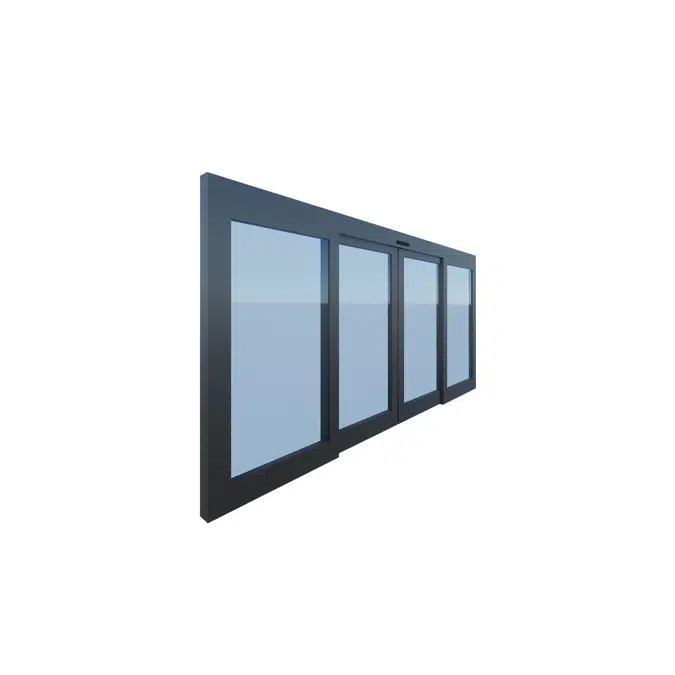

    ASSA ABLOY SL500 R92 Windload - built with wind in mind

    The ASSA ABLOY SL500 R92 Windload is an innovative entrance system door and features a durable functionality & sleek aesthetics that provides defense against wind pressures up to 55 psf when door is closed and locked. Designed to accommodate a range of sizes, the SL500 R92 Windload can accommodate spaces up to 96” wide for single slide, 192” wide for bi-part and 92” high.

    This entrance system door has a wide variety of features and options, the SL500 R92 Windload is the ultimate choice for any high-traffic environment where wind protection is needed.

    Specification
      • Max overall frame width: 192” bi-part, 96” single slide
      • Max overall frame height: 92”
      • Max wind pressure: 55psf
      • Full Dry Glazed System
      • Narrow Stile Design
      • Compliance with NFPA 101 life safety code
      • Grade 10 Forced Entry Resistance Rating
      • Optional insulated glass for U-value
      • Power Supply - 85V-265V adjusting automatically
      • Opening Time - 1.5 Sec. Max. size* (700mm/sec.)
      • Closing Time - 3.5 Sec. Max. size*
    Technical specification
    • Unique ref.assa-abloy-sl500-r92-windload
    • TypeBuilding Material
    • Date of publishing2022-01-08
    • Edition number1
    • Height (inches)92
    • Width (inches)192
    • Depth (inches)4.5
    Links
    Related
    • Material mainAluminium
    • Material secondaryGlass
    • Designed inSweden
    • Manufactured inUnited States
    • Weight Net (Lbs)300
    Classification
    • BIMobject CategoryDoors - Sliding
    • IFC classificationDoor
    • UNSPSC nameAutomatic doors
    • UNSPSC code30171510
    • Uniclass 2015 CodeAc_15_50_25
    • Uniclass 2015 DescriptionDoors, windows and glazing surveying
    • CSI MasterFormat 2014 Code08 32 13
    • CSI MasterFormat 2014 TitleSliding Aluminum-Framed Glass Doors
    • OmniClass Number23-17 11 13 19
    • OmniClass TitleSliding Metal Doors
    • CSI UniFormat II CodeB2030
    • CSI UniFormat II TitleExterior Doors
