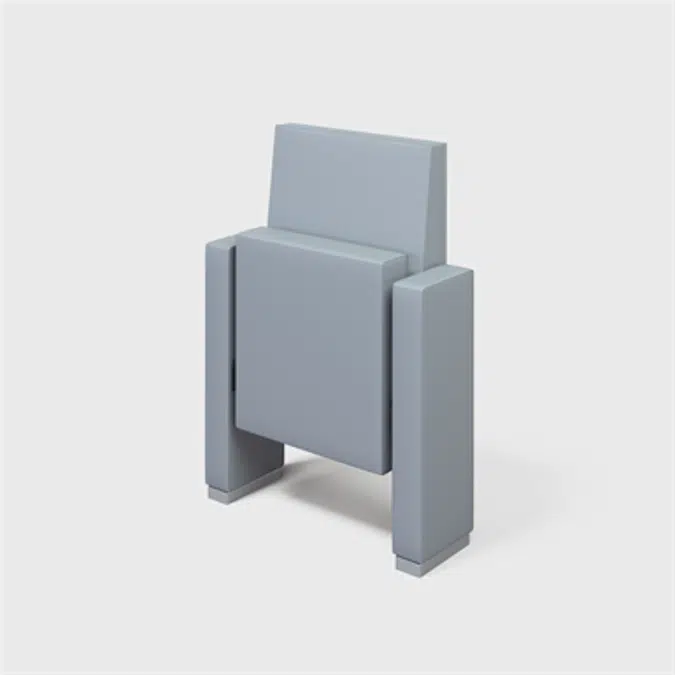

V9 - Seat with Movable Backrest

V9 SIDE

Sidewall structure made of sheet steel.
Cladding made from wood particle board panels.
Padding made with a layer of CFC-free polyurethane foam.
Seat rotation joints made of self-lubricating, maintenance-free acetal resin. The seat joints have a damper made of a high-tech elastomer that, at a temperature of 20°C, is able to absorb and transform 95% of the impact energy on the seat into heat during the automatic return to rest position. Thanks to this innovative element, the seat closes extremely quietly and with very little rebound.
The upholstery features flat-fell seams with double stitching, is not glued to the padding, and is stapled in non-visible locations on the sides.
Baseboard made of sheet steel that hides the screw heads of the two ground fixing points.

V9 BACKREST

Backrest structure made with a beech plywood insert.
Backrest padding made of a shaped layer of CFC-free, self-extinguishing polyurethane foam.
12.5° backrest tilt system made of press-folded steel plates rotating on long-lasting, maintenance-free self-lubricating bearings. Technopolymer end stops for noise elimination. Vertical return by way of long-lasting, maintenance-free gas spring. All screws have anti-unscrewing devices.
The backrest is fully upholstered (including the back side) and the upholstery, which has flat-fell seams with double stitching, is not glued, but rather fixed with a front mechanical anchoring system (pulled tight) and staples in non-visible areas.

V9 SEAT

Birch plywood structure.
Lateral supports made of sheet steel and drawn steel rod.
Laminated steel counterweights for gravity return of the seat.
Padding made of a shaped layer of CFC-free, self-extinguishing polyurethane foam.
Fully upholstered seat, with the upholstery featuring flat-fell seams with double stitching, not glued to the padding and covered and closed at the rear with a zip. Seat is removable without the need for tools.

ANTI-PANIC WRITING TABLET (when included)

Writing tablet top made of HPL laminate.
Mechanism of the anti-panic writing tablet (when standing up, the slight upward thrust exerted with the legs on the tablet ensures that it starts to move until it reaches its vertical resting position inside the side), consisting of a pressed steel sheet metal structure with a black galvanized finish that contains the internal mechanism, made of a self-lubricating die-cast zinc alloy that guarantees silent and maintenance-free operation. The tablet attachment is made of a steel rod welded to the deep-drawn sheet steel desk support and protrudes from the mechanism. The attachment has an epoxy powder-coated finish. The mechanism also has two springs, one that ensures complete retraction inside the side of the tablet and at the same time its easy removal, and one that allows the automatic vertical rotation of the tablet for anti-panic operation.
The entire tablet unit is fixed to the side so as to simplify assembly and any disassembly operations that can be carried out without having to remove the side of the chair.
Epoxy powder-coated finish on metal parts.
