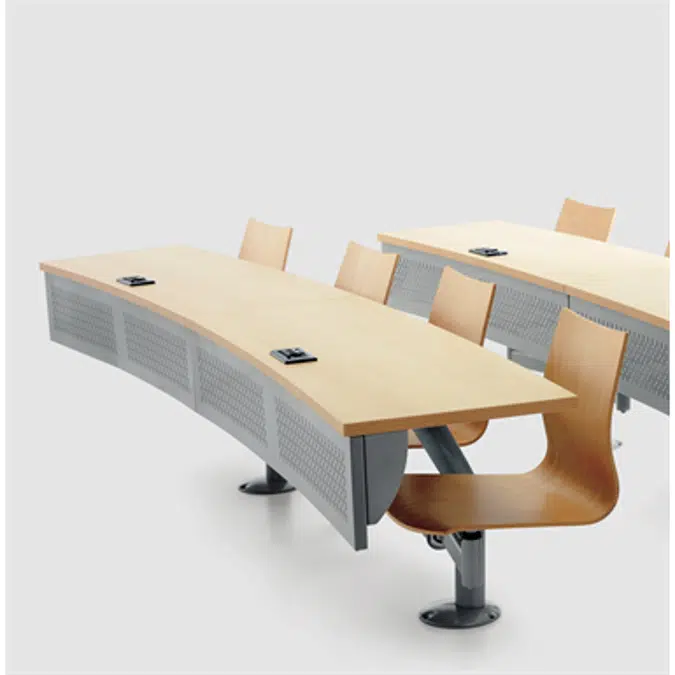

Thesi - Seating with Tablet for Classroom

THESI SYSTEM

Structure
• Inspectable tubular steel leg, welded to a deep-drawn pressed sheet steel foot with three holes for floor fastening
• Jointed arm, with automatic return to rest position, made of die-cast aluminium with seat attachment cone made of turned steel
• Jointed arm attachment plate in sheet steel
• Scratch-proof epoxy powder-coating in grey G1
• White galvanized screws and self-locking nuts

Frontal Panel
• Front panel for use with standard cable ducts (not inspectable) made from scratch-resistant epoxy powder-coated sheet steel in G1 grey.

Evo Frontal Panel
• Evo frontal panel for cable ducts (fully inspectable) made from epoxy powder-coated sheet steel in grey G1 with front cover in grey extruded aluminium, lateral closures or junction details in black PP.

Table (2 seats)
• Writing table made of 30mm particle board covered with natural beech L1 laminate on both sides and ABS edged on all four sides.
• Table fixing plate made of grey G1 scratch-resistant epoxy powder-coated sheet steel.

Options Table
• Table covering in laminate alpine beech L2, grey L3, black L5, anthracite L6 and white L7
• Central hole pattern on the table for Top Access insertion or lateral hole pattern for insertion of cable bushing with a diameter of 60mm

Master Seat
• Beech plywood monocoque. Painted with water-based paint with natural F1 finish.

Pad Seat
• Beech plywood monocoque. Painted with water-based paint with natural F1 finish. Seat/backrest counter panels made of beech plywood with self-extinguishing polyurethane foam padding, fire reaction class 1 IM. Fabric or eco-friendly leather covering.

Soft Seat
• monocoque with internal structure in tubular steel and padding in cold-moulded, CFC-free self-extinguishing polyurethane foam, with fire reaction class 1 IM. Fabric or eco-friendly covering.

Plastic Seat
• Monocoque entirely made of class 1 fireproof polypropylene in white C01 and silk grey C07.

General Options
• Inter-row bars to avoid fixing to floor. The bars allow for the passage of electrical or data network cables. Made of folded sheet steel and painted with scratch-resistant epoxy powder in G1 grey. The sides are bevelled to allow easy passage between rows for people with disabilities.
