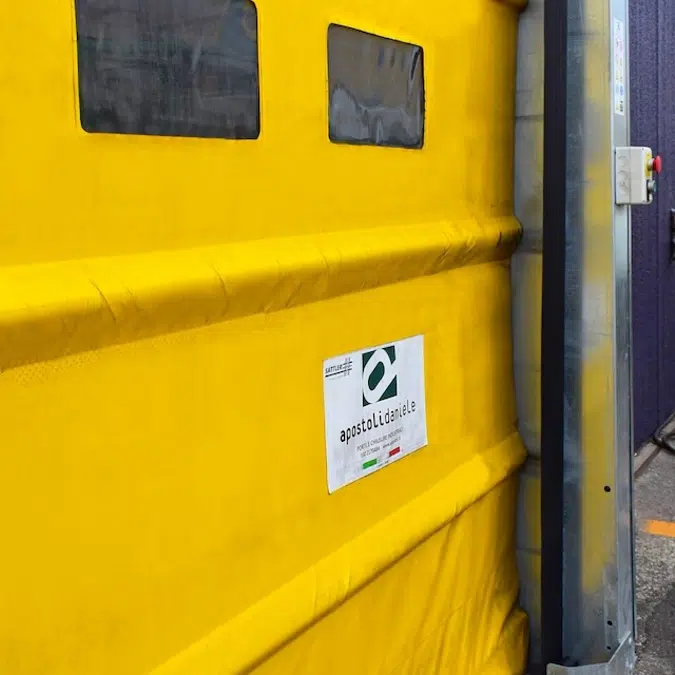

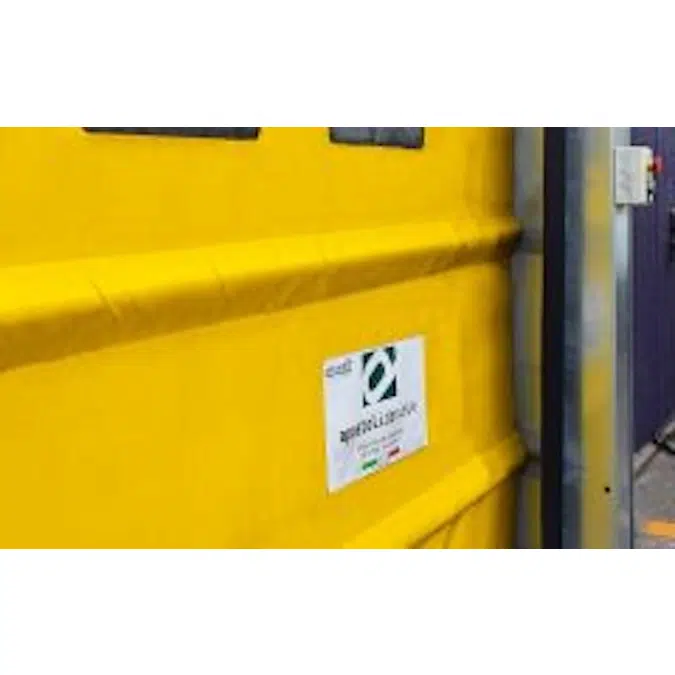

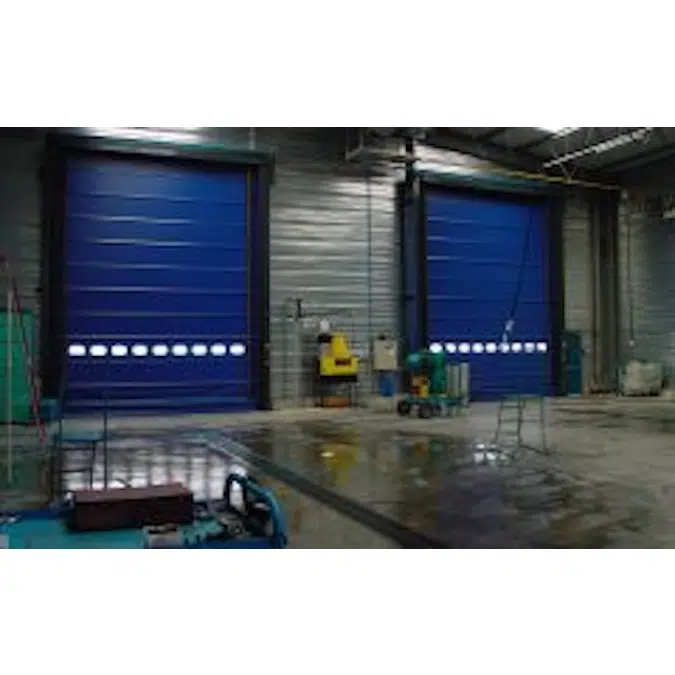

Rapid Automatic fold up Door F30

Application: inside/inside, inside/outsidePillars and crossbeam: Pillars and crossbeam in press-bending plate in galvanised steel, RAL or stainless steel on demandCurtain: self-extinguishing PVC class II, anti UV and anti mould, stiffened by tubes.Anti-raising: system composed by two security photocells that block the door in case the raising belts accidentally hook one person or one object. Norm UNI EN 13241-1.Manual-repair: the flexible rails avoid tubes damages allowing a manual curtain reinsertion in case of coming out.Anti-damage: the flexible rails avoid permanent damages to the structure.Windows: windows or visibility stripesOptional: slatted curtain, sound-absorbing curtain, semi-automatic counterweight

Opening systems Metal detector: automatic opening command with magnetic loops metal mass sensorRadar: opening command for industrial doors. It detects both people and vehicles on surfaces from 1 to 20 square meters, adjustable according to need.Remote control: transmitter-operating range from 80 to 100 meters.

Security systems The passage control is managed and controlled in safety through two transmitting photocells (one for each door side) and two receiving ones with amplifier. Mobile protection device on the closing edge consisting of a sensitive resistive strip that in case of contact transmits via radio with the control unit. In case of accidental impact, it determines the arrest and the immediate reopening as required by the Norm UNI EN 13241-1. NO TOUCH SECURITY SYSTEM

Motor controlNominal installation tension 400V / 3+T - Frequency 50 Hz – Motor power from 1,5 to 2,2 kW - Single speed gear motor installed outside the crossbeam under the cover.

Technical detailsOpening closing/speed 0,6 m/s – Resistance to curtain tears 3000 N/5cm – Rails min. traction resistance 20.000 N – Resistance to pressure difference CL 2 - Max inside dimensions 8000x8000 mm – Max outside dimensions 7500x7500 mm - Max. Strength on primary edge UNI EN 13241-1 - Doors according to the Norm UNI EN 13241-1
