Large Pipe Chase Housing and Curb - 18"

Architectural Roofing Penetration System

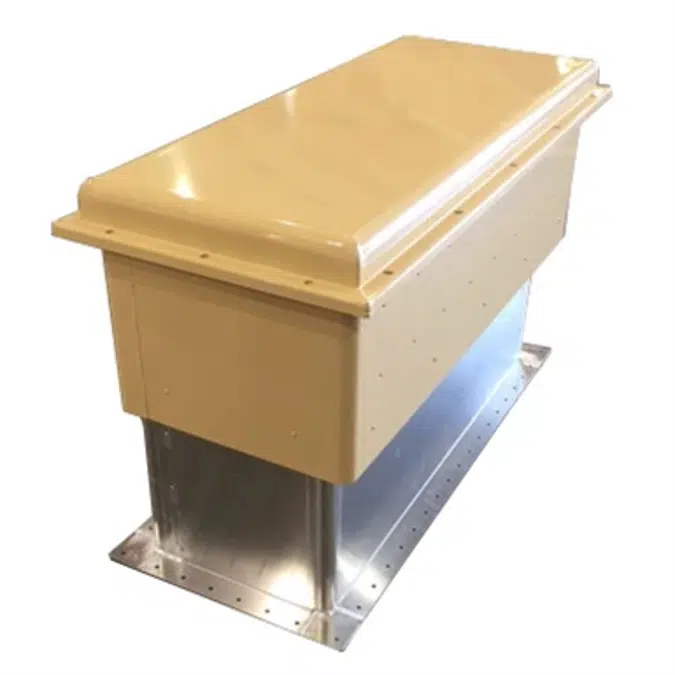

Model AL-343424 & ALTC-L18 LARGE Pipe Chase Housing & 18” Curb

Housing Model# AL-343424 : 34"L x 34"W x 24"H

Curb Model# ALTC-L18 : 32"L x 32"W x 18"H

Note: Overall height of the Pipe Chase Housing mounted on top of the Sigrist Curb is 39” tall -
There is a 3” skirt/overlap from the Pipe Chase Housing down over the top of the curb.
*** Dimensions are nominal and may be revised without notice

Please be aware that all Housing and Curbs are sold separately.

Specification

Specifications - Pipe Chase Housing
.125” aluminum (Housing and curb assemblies)
UV protected powder coating - Housing only
Full thermal break interior with gaskets and insulation
Stainless steel fasteners
Housing has Exit Seal locater/starter dimples
Specifications - Curb
.125” aluminum - non finished exterior
Skip welded seams Full thermal break interior (Insulation pad)
