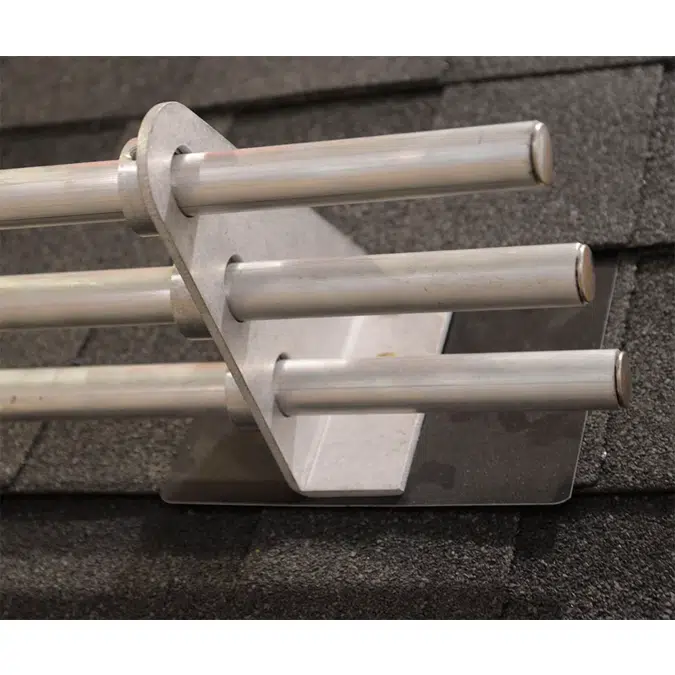

SSG-313H3AL-812BLK - Pipe Style for Asphalt Shingle

SSG-313H3AL-812BLK - Pipe Style for Asphalt Shingle

Alpine SnowGuards

SSG-313H3AL-812BLK - Pipe Style for Asphalt Shingle

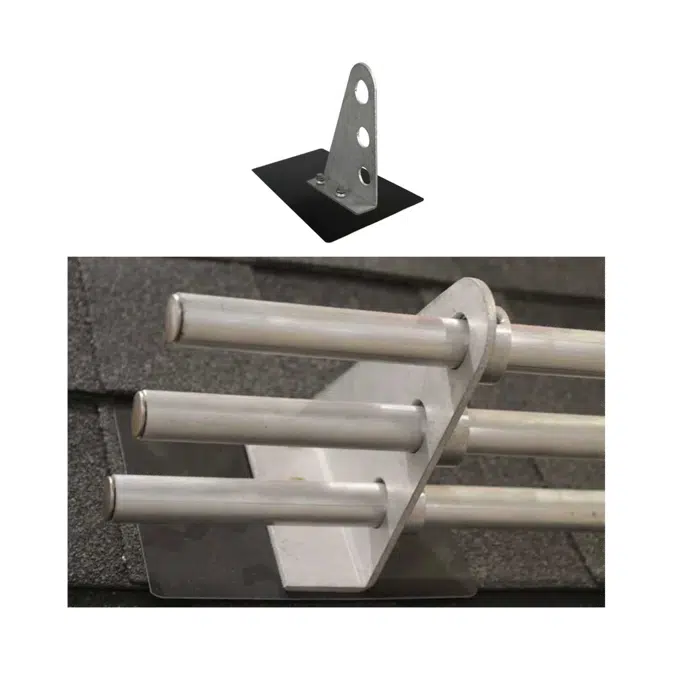

The SSG-313H3AL-812BLK Pipe-Style Snow Guard is a direct-to-deck system designed to provide solar snow management on new or existing Composition (Asphalt) Shingle roofs, particularly when used in conjunction with solar panels. This specific model utilizes a matte black 8” x 12” aluminum flashing with an integrated EPDM bushing to create a watertight compression seal when installed into roof rafters. The aluminum bracket comes in a three-pipe configuration, accepts 1” OD pipe (tubing), and is compatible with optional Ice Flags and Ice Screens.

Roof Types

Solar Panels
Asphalt Shingles

Available Materials

Aluminum (AL)
Brass (BR)

Available Finishes

Mill Finish
Powder Coating (additional charge) using RAL TIGER Drylac® Exterior Colors

For more information, please contact Alpine SnowGuards at info@alpinesnowguards.com or call 888-766-4273.

Technical specification

Unique ref.SSG-313H3AL-812BLK_-_Pipe_Style_for_Asphalt_Shingle
Product familySnow Guards
Product groupPipe-Style or Fence-Style Snow Guards
TypeObject (single object)
Date of publishing2022-02-10
Edition number1
Height (inches)8
Width (inches)0.18
Depth (inches)6

Links

Related

Material mainAluminium
Designed inUnited States
Manufactured inUnited States

Classification

BIMobject CategoryConstruction - Roof Accessories
IFC classificationObject
UNSPSC nameRoofing accessories
UNSPSC code301516
Uniclass 2015 CodeSs_25_16_05
Uniclass 2015 DescriptionAvalanche and snow barrier systems
CSI MasterFormat 2014 Code07 72 53
CSI MasterFormat 2014 TitleSnow Guards
OmniClass Number23-13 41 21
OmniClass TitleRoof Snow Guards

Region availability

North America
Canada
United States
