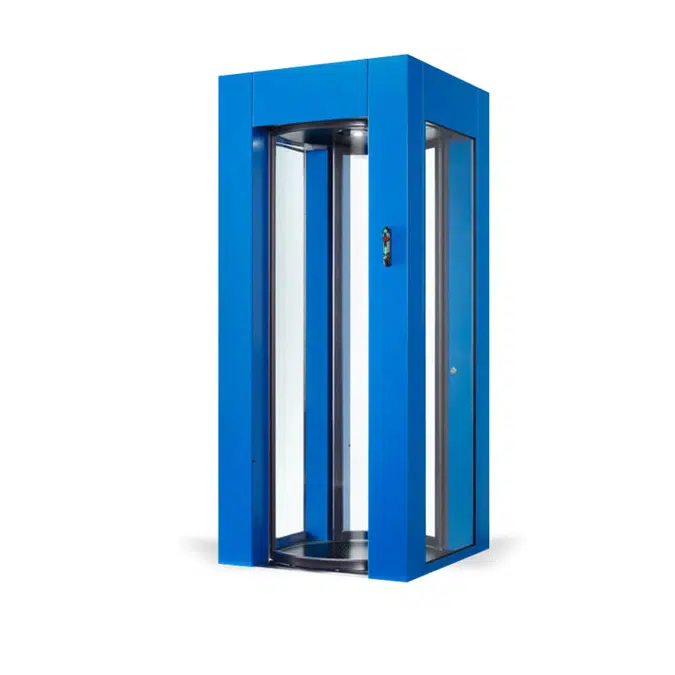

Alluser E1 – Squared Security Portal

The Alluser E1 is a compact interlocking security portal from the Classical series, engineered to provide robust access control in high-security environments with limited space. With an external width of just 995 mm, it is the narrowest portal on the market that still offers a full 600 mm clear passage width—an exceptional balance of space efficiency and user comfort.

The E1 is typically installed fully indoors, with the non-secure side flush-mounted to the external wall, allowing seamless architectural integration in entrance halls, bank vestibules, and secure facility lobbies.

It integrates the Alluser Interlocking Door System and supports the optional APD (Anti-Piggybacking Detection) ultrasonic technology, which guarantees single-user access by preventing tailgating. The structure is modular and designed for identity verification, badge or biometric authentication, and can also include a metal detector for enhanced threat detection

Specification

Dimensions:
External Width: 995 mm
Clear Passage Width: 600 mm
Cabin Diameter: 820 mm
Internal Height: 2048 mm
External Height:
2382 mm S version
2320 mm R version
Available HUC: 2135 mm or 2300 mm
Standard features:
RAL powder-coated outer finish (pearl colours optional)
LED lighting system (3000 K, 50,000-hour lifespan)
Infrared presence and safety sensors
Curved sliding doors, fail secure
Emergency unlocking
LED traffic lights on both sides
Alluser interlocking motherboard with APS software
Glazing options:
P2A standard glass (EN 356)
P4A / P6B anti-vandal (EN 356)
BR3 and BR4 bullet-resistant glass (EN 1063)
Available Options:
APD: Anti-Piggybacking Device (ultrasonic sensor system)
Brushed or polished steel / aluminium finishes
Web LAN control module
Additional control panel and service mode key switch
Pressure mat, 2-zone contact mat, reed tamper sensor
Rescue push-button (to safely reopen last door)
Metal Detection
Available versions:
E1-S: Welded body for flush installation
E1-R: Raised base version for surface mounting
E1-K: Modular kit version for on-site assembly
Typical applications:
Banks and financial institutions
Corporate HQs and administrative buildings
Secure data rooms and back-office areas
Embassies, compliance zones, and R&D access points

Technical specification

Unique ref.alluser-e1-squared-security-portal
Product familyClassical Series
Product groupSecurity Portals
TypeObject (single object)
Date of publishing2025-08-06
Edition number1
Height (mm)2320
Width (mm)995
Depth (mm)995

Links

Product urlhttps://www.alluserindustrie.com/classical-series/e1/
Technical descriptionhttps://www.alluserindustrie.com/wp-content/uploads/2019/10/E1-portal-C1479k-01-Alluser-Industrie-Srl.pdf

Designed inItaly
Manufactured inItaly
