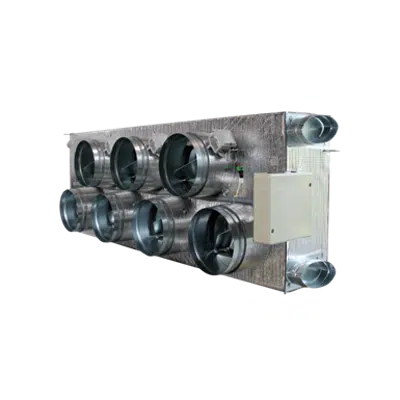

Motorized plenum Mitsubishi Heavy standard 4 dampers

Airzone motorized plenum with collar that mechanically adapts to the main ducted AC units.

Airzone motorized plenum includes:

● Main control board that controls the system through wired and wireless devices.

● Webserver Airzone Cloud Wi-Fi.

● Communication gateway (for more information, see the technical datasheet of the gateway).

● Wi-Fi electricity consumption measurement pack Airzone.

● Round dampers of 200/150 mm in diameter.

● Manual airflow control system.

● Controlled mechanical ventilation (CMV) input of 150 mm in diameter.

● Air purification system through ionization.

● Air quality meter AirQ Sensor; with bus cable (15m).

● Depending on the motorized plenum (nº of dampers and settings) and the controlled indoor unit, the sound pressure may vary to ±3 dB(A) and the pressure drop may vary from 5 to 15 Pa.

Technical specification

Unique ref.Easyzone_AZEZ6MHIST_4
Product familyEasyzone
Product groupMotorized plenum
TypeObject (single object)
Date of publishing2017-03-30
Edition number1
Height (mm)300
Width (mm)1140
Depth (mm)454

Links

Material mainGalvanized steel
Material secondarySheet metal
Designed inSpain
Manufactured inSpain

Classification

BIMobject CategoryHVAC - Air Conditioning
IFC classificationDistribution Control Element
ETIM CodeEC011777
ETIM NamePlenum for airconditioning unit
UNSPSC nameDucts
UNSPSC code401419
Uniclass 2015 CodeSs_65_80
Uniclass 2015 DescriptionAir conditioning systems
CSI MasterFormat 2014 Code23 09 33
CSI MasterFormat 2014 TitleElectric and Electronic Control System for HVAC
OmniClass Number23-33 49 00
OmniClass TitleHVAC Ductwork
CSI UniFormat II CodeD3090
CSI UniFormat II TitleOther HVAC Systems & Equipment
