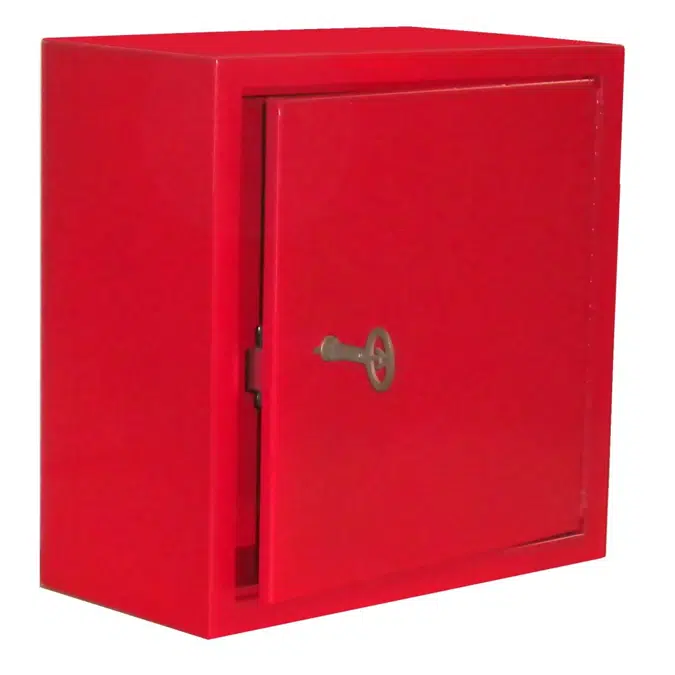

JL Industries | Security Series – Heavy Gauge Detention Cabinet | CSF

SPECIFICATIONS:

Tub Material: 12 gauge cold rolled steel (CRS) with masonry anchors

Trim Material: 12 gauge cold rolled steel (CRS), full recessed 1/8" square flat, semi-recessed 2-½" square trim, surface mount square trim

Door Material & Style: 20 gauge cold rolled steel; solid door with security prep or lock installed

Insulation: Foil-faced mineral wool

Hinge: Continuous hinge, 12 gauge cold rolled steel, powder coat white, opens to 135°

Insulation: An inner tub of the same material and finish as the frame surrounded by fire-resistant material

Finish: White powder coat

ADA Compliance: Cabinet cannot protrude more than 4" and the handle cannot be mounted more than 48" above finished floor. Surface-mount does not comply with ADA.

FIRE-RATINGS:

Fire Rating: Intertek Warnock Hersey listed and labeled up to 2 hours in accordance with ASME E814 and CAN/ULC-S115

OPTIONS:

Lock Preps: Mortise cam, mortise deadbolt, detention deadbolt, detention deadbolt Mogul, detention slam, detention slam Mogul

Finish: Red, black, other powder coat colors

Lettering: Silkscreen, engraving

ADDITIONAL ACCESSORIES (sold separately)

Die cuts, decals, plastic signs

See supplemental submittals for more information on various options and accessories.
