Fabrisorb™ Decorative Fabric Wrapped Hanging Clouds

Decorative Fabric-Wrapped Acoustic Ceiling Clouds

Transform large, reverberant spaces into comfortable, high-performing environments with Fabrisorb™ Decorative Fabric-Wrapped Acoustic Clouds. Engineered for exceptional sound absorption and crafted with a clean architectural aesthetic, these baffles deliver the perfect balance of acoustical performance and design versatility.

Ideal for gyms, auditoriums, offices, lobbies, atriums, and any large space with high ceilings, Fabrisorb clouds reduce echo and improve speech clarity—creating spaces that both look and sound better.

Key Benefits

High Acoustic Performance – 6-7 PCF fiberglass cores deliver reliable sound absorption to manage noise and reverberation.
Architecturally Decorative – Choose from a wide array of fabrics or perforated vinyl finishes to complement any interior design.
Custom Engineered & Manufactured – Each cloud is fabricated to meet the specific aesthetic and acoustic needs of your project.

Product Details

Construction: Rigid 6-7 lb. fiberglass with desired edge profile and wrapped with a decorative fabric.

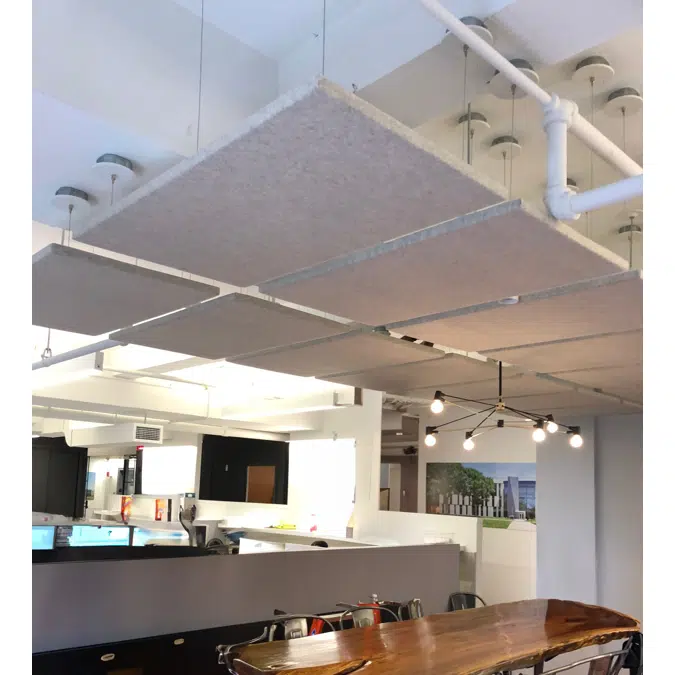

Mounting: Factory installed mounting plates on back of cloud as point of attachment for eye screw and suspended from structure with wires.
Thickness Options: 1", 1-1/2", or 2".
Sizes: Fully custom, up to a maximum of 4' x 8'.

Specification

SECTION 09 51 13
Noise S.T.O.P. Fabrisorb^TMCloud Fabric Wrapped Acoustical Panel
PART 1 GENERAL
1. SECTION INCLUDES
  1. Noise S.T.O.P. Fabrisorb^TM Cloud fabric wrapped acoustical panel.
2. REFERENCES
  1. American Society for Testing and Materials (ASTM)
    ASTM C423: Standard Test Method for Sound Absorption and Sound Absorption Coefficients by the Reverberation Room Method.
    ASTM E84: Standard Test Method for Surface Burning Characteristics of Building Materials.
    ASTM E795: Standard Practices for Mounting Test Specimens During Sound Absorption Tests
  2. International Code Council (ICC)
    ICC IBC: International Building Code
3. SUBMITTALS
  1. Product Data: Manufacturer’s data sheet and installation instructions.
  2. Samples: Submit, at minimum, a 4” x 4” sample for each type of specified acoustical panel.
  3. Test Reports: Upon request, submit certified test reports to verify specified product performance.
4. QUALITY ASSURANCE
  1. Qualifications:
    Manufacturers: Provide acoustical ceiling panels from a single manufacturer.
    Installers: Utilize an installer having demonstrated experience on projects of comparable size and complexity.
  2. Performance Requirements:
    Surface Burning Characteristics: Acoustical panels to perform as specified when tested in accordance with ASTM E84. Acoustical panel surface burning performance should comply with the International Building Code and other local building code requirements.
    Acoustical Characteristics: Acoustical panels to perform as specified when tested in accordance with ASTM C423.
5. DELIVERY, STORAGE, AND HANDLING
  1. Storage and Handling Requirements:
    Handle panels carefully to avoid any damage.
    Store panels indoors in a clean, cool, dry place, and out of direct sunlight.
    Store panels in a space where the ambient temperature and humidity conditions are being maintained at the levels indicated for the project when occupied for its intended use.
6. SITE CONDITIONS
  1. Ambient Conditions:
    Maintain ambient temperature and humidity conditions at levels indicated for the project when occupied for its intended use.
    Do not install products under environmental conditions outside manufacturer’s recommended limits.
  2. Existing Conditions: Do not install ceiling panels until space is enclosed and weather proofed, wet work is completely dry, and work above ceilings is complete.
7. WARRANTY
  1. Provide manufacturer’s written product warranty per Section 01 77 00 – Closeout Procedures.
PART 2 PRODUCTS
(Specifier Note: Red colored text below requires you to select an option before this specification can be completed. Options in red text are bound by parenthesis. Additional Noise S.T.O.P. Fabrisorb Cloud information can be found on our website www.acousticalsurfaces.com/fabric_panelclouds-htm/)
1. MANUFACTURERS
  1. Acoustical Surfaces, Inc., 123 Columbia Court N, Chaska, MN 55318.
    Phone: 952-448-5300. Fax: 952-448-2613. Website: www.acousticalsurfaces.com
2. DESCRIPTION
  1. Product: Noise S.T.O.P. Fabrisorb^TM Cloud fabric wrapped acoustical panel by Acoustical Surfaces, Inc.
  2. Product Options:
    Panel Composition: Fiberglass core wrapped with acoustically transparent fabric facing
    Panel Density: 6-7lb pcf
    Panel Thickness: (1”) / (1-1/2”) / (2”)
    Panel Size: (Custom sizes up to 4’ x 8’)
    Edge Profile: (Square) / (Bevel) / (Half-Bevel) / (Radiused)
    Finish: Wide range of standard and custom facing options
    Mounting Method: Suspension by Other
  3. Product Performance:
    Acoustical Performance
    Absorption (Sabins per 24” x 48” unit) per ASTM C423
Thickness

1”

2”

Avg. Sabins/Cloud

10.45

14.02
1. Surface Burning Performance
  1. Fire Rating per ASTM E84: Class A.
PART 3 EXECUTION
1. EXAMINATION
2. Verification of Conditions:
3. All wet work in the installation area must be complete, cured, and dry prior to installation.
4. Work above ceilings shall be complete, inspected, and accepted before ceiling work begins.
5. INSTALLATION
6. Comply with manufacturer’s instructions and recommendations for installation of ceiling panels and with industry standards.
7. CLEANING
8. Clean surfaces of ceiling panels per manufacturer’s instructions or recommendations.
9. Remove and replace damaged or discolored material and material that cannot be properly cleaned.
10. PROTECTION
11. Protect installed work from damage due to subsequent construction activity, including temperature and humidity limitations and dust control, so that the work will be without damage and deterioration at the time of acceptance by the owner.
END OF SECTION
