ProfessionalLINE 110_Busch-Jaeger

ProfessionalLINE 110_Busch-Jaeger

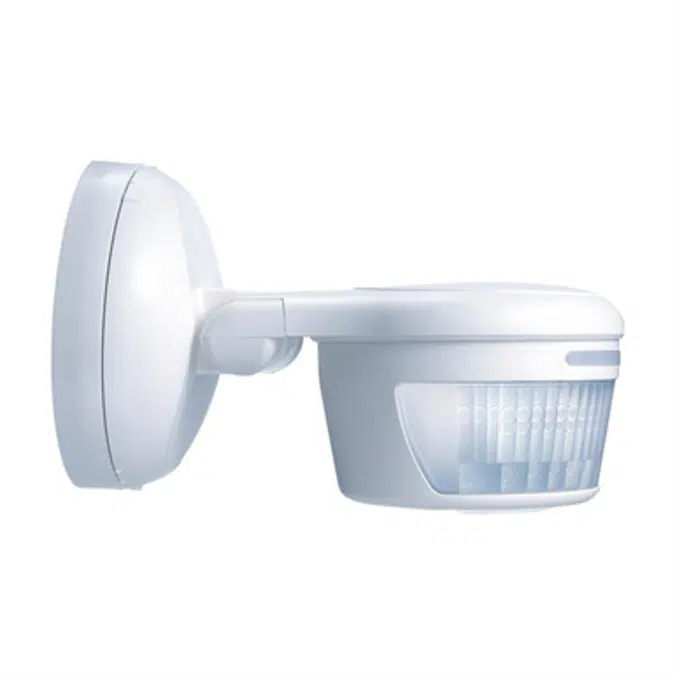

Electronic movement detector for detecting thermal motion. With display for detection and operation mode. With ground and rear-field detection. With planar compensation: +/- 30°. With high-quality lens for optimum detection. Detection sensitivity selectable in 3 steps. Surveillance density: 84 sectors with 336 switching segments. All functions controlled by microprocessor. Always-On (4 hours) and Presencesimulation can be activated via IR-remote control. With automatic range stabilization. With automatic interference suppression. With automatic dazzle-proofing. With brightness-independent test mode for evaluating the detection zone. Additional possibility for switch-on via normally open push-button switch. Switch-off delay: 10 sec to 30 min or short-time pulse 1 sec adjustable.

Technical specification

Unique ref.ProfessionalLINE-110_Busch-Jaeger
Product familyKNX Visualisation, Display and Signalling Device
Product groupKNX range
TypeObject (single object)
Date of publishing2020-12-21
Edition number1
Height (mm)97
Width (mm)97
Depth (mm)159

Links

Product urlhttp://new.abb.com/products/2CKA006800A2330/
Technical descriptionhttp://new.abb.com/products/2CKA006800A2330/

Related

Material mainPlastic
Weight Net (Kg)0.32

Classification

BIMobject CategoryElectronics - Other Electronics

Region availability

Europe
Germany
