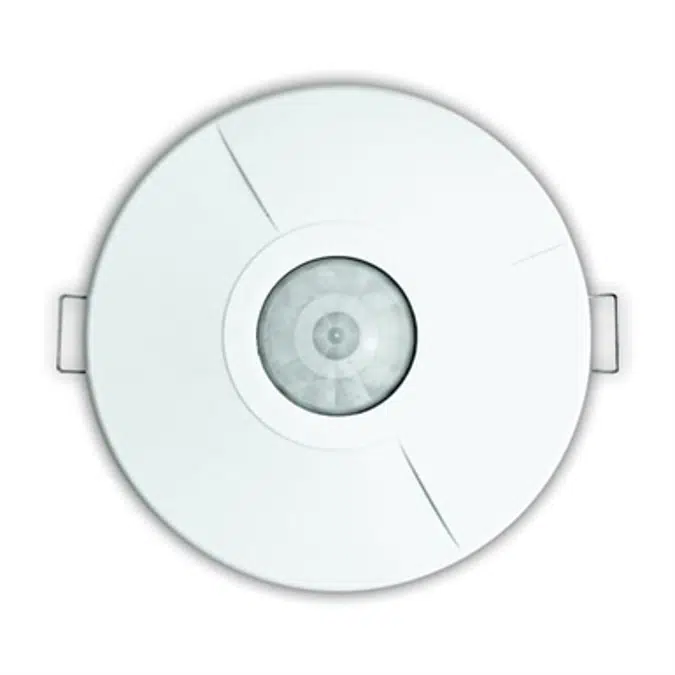

Presence Tech BasicLINE_Busch-Jaeger

Presence Tech BasicLINE_Busch-Jaeger

For switching lighting systems that depend on brightness and movement. Detection range (for installation height of 3 m), circular, up to 8 m in diameter. For semiautomatic and fully automatic operation. Additional activation/deactivation possibility through pushbutton input. Adaptation of the detection range possible using the included masking elements. With brightness-independent test mode for evaluating the detection zone. With detection display in test mode. Mounting possibility in combination with built-in installation boxes and device sockets. Ceiling installation using integrated spring bracket. Adjustment elements accessible on the front side. Low mounting height (31 mm) Surveillance density: 32 sectors with 128 switching segments. Switch-off delay: approx. 5 sec - 30 min or short-time pulse adjustable.

Technical specification

Unique ref.Presence-tech-BasicLINE_Busch-Jaeger
Product familyLighting Control
Product groupLighting controller
TypeObject (single object)
Date of publishing2020-12-21
Edition number1
Height (mm)111
Width (mm)111
Depth (mm)59

Links

Product urlhttp://new.abb.com/products/2CKA006800A2509/
Technical descriptionhttp://new.abb.com/products/2CKA006800A2509/

Related

Material mainPlastic
Weight Net (Kg)0.255

Classification

BIMobject CategoryElectronics - Other Electronics

Region availability

Europe
Germany
