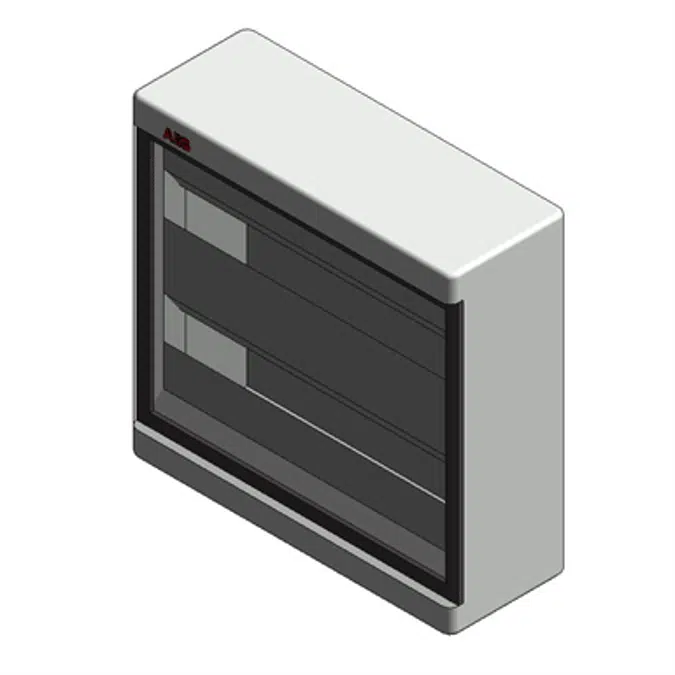

Europa 65 String Combiner - 1000V DC (2 fuse)

In a photovoltaic system, the modules are arranged in strings and fields depending on the type of inverter used, the total power and the technical characteristics of the modules. ABB offers a plug & play solution that accommodates not only the inverter but also the overcurrent protection devices, disconnectors and surge protective devices (SPDs) in one solar combiner box. Depending on the application combiners are equipped with monitoring devices to measure the current, voltage and temperature to ensure the availability of the strings and to maximize generation. The string combiner boxes form subsystems that can be standardized according to the number of strings, voltage and rated current. ABB offers different product ranges, each dedicated to specific installation conditions with typical configurations.

Specification

Main Features Factory-assembled combiner box solutions for all residential, commercial and utility-scale applications with single string, or up to 32 strings in 1000V and 1500VDC; monitoring optional Solar string combiners are built with Gemini thermoplastic outdoor enclosures due to its great mechanical strength Protection against dust, heavy seas or powerful jets of water, chemicals and high UV rays thanks to its mechanical features: IP66, IK10 and GWT 750°C Electrical features: double insulation (Class II), Ui/Ue: 1000V DC/1500V D Depending on site conditions Gemini enclosures can be floor standing or wall mounted

Technical specification

Unique ref.Europa-65-1000V-DC-2-fuse
Product familyString combiner
Product groupSolar Combiners
TypeObject (single object)
Date of publishing2019-08-20
Edition number1

Links

Product urlhttps://new.abb.com/low-voltage/products/system-pro-e/solar-combiners
Installation instructionshttps://new.abb.com/low-voltage/products/system-pro-e/solar-combiners
Technical descriptionhttps://new.abb.com/low-voltage/products/system-pro-e/solar-combiners

Material mainSteel
Material secondarySteel

Classification

BIMobject CategoryHVAC - Control Panels
IFC classificationController
UNSPSC nameElectrical control panels for generators
UNSPSC code26131801
