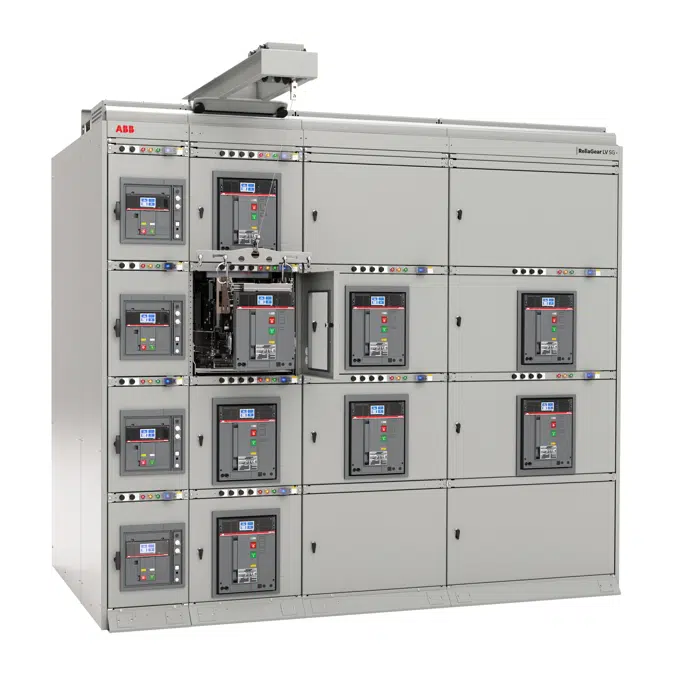

ReliaGear SG 3.0

Key Benefits:

· Safe: Front-accesscustomer wiring connections, remote breaker operation, and compartmentalizationhelp reduce exposure to electrical hazards. Advanced protection capabilities,including RELT, MDGF, and arc-flash sensing, support safer operation and maintenance.

· Adaptable: Modular architecture and standard base-stackdesigns accommodate different applications and expansion needs. Fully ratedbreaker compartments, digitally upgradeable features, accessible CTs, andflexible equipment depths support future upgrades and late-point modifications.

· Reliable: Pre-engineered modular designs support morepredictable delivery, while local and remote monitoring improve systemvisibility. Enhanced thermal performance, simplified serviceability, and ABBlifecycle support help maintain long-term equipment performance.

Key Features:

· Ratings and applications: Supports 2000 A-6000 A main bus ratings for applicationsup to 600 V AC, with fully rated short-circuit protection up to 100 kAIC

· Updated configurations: Includes updated configurations for main circuitbreakers, main lugs, and feeder power circuit breakers, while maintaining coreswitchgear construction details

· Breaker technology: Uses SACE® Emax 3 air circuit breakers to supportapplications up to 6000 A, with E2.3, E4.3 and E6.3 frames

· System options: Available in 3P and 3P 4W configurations for 208 V AC,240 V AC, 480 V AC, and 600 V AC systems

· Distribution capabilities: Supports main circuit breakers up to 6000 A, main lugs upto 6000 A, and feeder air circuit breakers from 200 A-4000 A

· Standards and construction: Built to UL 1558 with indoor and outdoor (walk-in andnon-walk-in) enclosures and seismic ratings per IBC-2021 / CBC-2022

· Enclosure Dimensions: Available depths: 60", 67", 74".Available widths: 22", 30", 38", 49". Height: 92"
