20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm
    Dornbracht

    20713819FF0010 VAIA Three-hole basin mixer with pop-up waste 168 mm

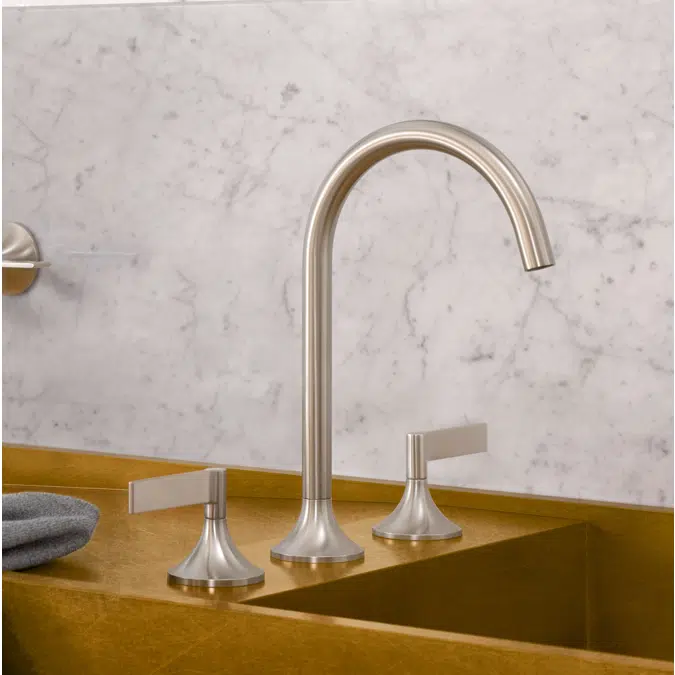

    VAIA Three-hole basin mixer with pop-up waste 6-5/8"

    Specification

    • VAIA Three-hole basin mixer with pop-up waste 6-5/8"

      • 6-5/8" Projection
      • US drain with overflow
      • Swiveling spout 360°
      • Round aerated stream
      • Total height 11"
      • Height to aerator/spout outlet 7-1/2"
      • Valve hole diameter 1-1/4"
      • Spout hole diameter 1-3/8"
      • Flange diameter 2-3/8"
      • Water flow rate limited to max. 1.2 gpm
      • lead-free

      Codes & Standards

      • NSF/ANSI 372
      • California Energy Commission (CEC)
      • ASME A112.18.1/CSA B125.1
      • NSF/ANSI/CAN 61
      • ADA

      (ADA)

      Suitable only for basins with overflow.

      Available in chrome, platinum matte, platinum, Brushed Durabrass, Dark Platinum matte

    Technical specification
    • Unique ref.20713819FF0010
    • Product familyVaia
    • Product groupLavatory faucets - Deck mounted
    • TypeObject (single object)
    • Date of publishing2021-10-11
    • Edition number1
    Links
    Related
    • Material mainBrass
    • Designed inGermany
    • Manufactured inGermany
    • Weight Net (Kg)2.64
    Classification
    • BIMobject CategorySanitary - Taps & Mixers
    • IFC classificationSanitary Terminal
    • ETIM CodeEC011328
    • ETIM NameWashbasin mixing tap
    • UNSPSC namePlumbing fixtures
    • UNSPSC code3018
    • Uniclass 2015 CodePr_40_20_87_84
    • Uniclass 2015 DescriptionSink taps
    • CSI MasterFormat 2014 Code22 40 00
    • CSI MasterFormat 2014 TitlePlumbing Fixtures
    • OmniClass Number23-31 11 00
    • OmniClass TitleFaucets
    • CSI UniFormat II CodeD2010
    • CSI UniFormat II TitlePlumbing Fixtures
