VH-Variabel Plus

VH-Variabel Plus

VH-Variabel Plus

VH-Variabel Plus

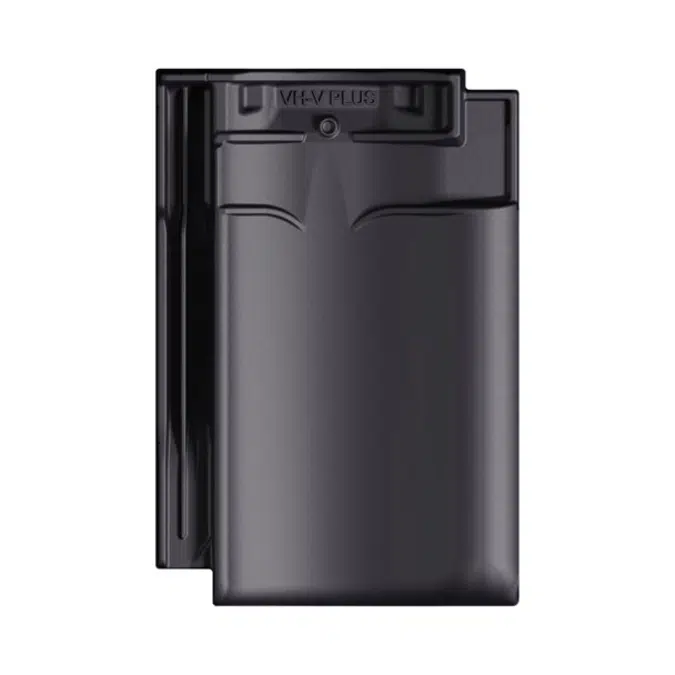

Classic, Familiar, and Renewed: The VH-Variabel Plus Roof Tile

The VH-Variabel Plus, our Improved Hollow roof tile, has been a well-known name for years and continues to evolve. With its classic, stylish appearance and characteristic "V"-shaped extra water guidance, the VH-Variabel, with its gentle wave, is still the ideal choice for a beautiful and familiar Dutch roof. This renewed generation offers even more flexibility thanks to greater variability in both length and width, allowing the roof tile to perfectly adapt to all roof constructions.

Specification

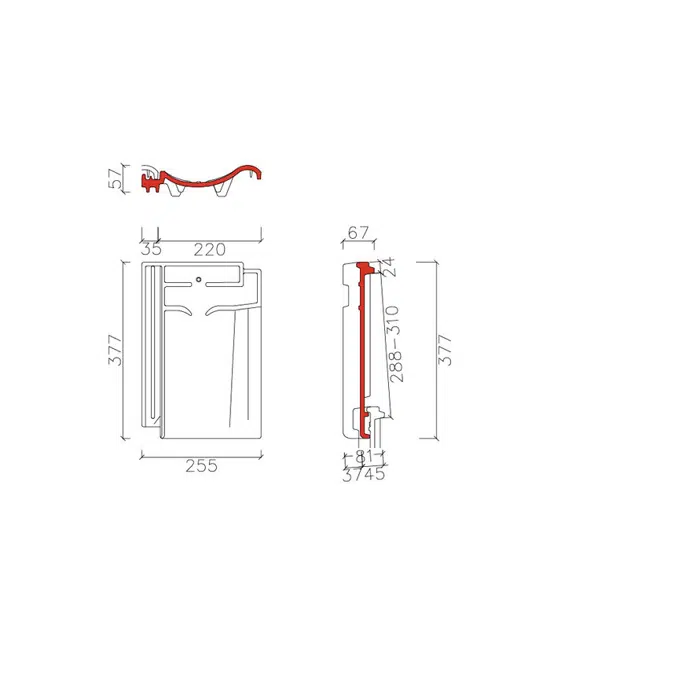

Batten gauge 300 mm (288 - 310 mm). Minimum Roof pitch 15°. For roof pitches 15-25° consult with the Dakservice or sales contact. Dimensions (L x W) 377 x 255 mm. Coverage 220 mm +/- 2mm. Units per m2 of 14,7 - 15,8. Weight per m2 ± 42,7 kg

Technical specification

Unique ref.vh-variabel-plus_7780081_nl
Product familyPitched Roof Tile System
Product groupVH-Variabel Plus
TypeShowcase (model)
Date of publishing2025-09-25
Edition number1
Height (mm)377
Width (mm)255
Depth (mm)67

Links

Product urlhttps://www.bmigroup.com/nl/hellend-dak/keramische-dakpannen/
Product certificationhttps://www.bmigroup.com/nl/downloads/certificaten/?filters=%5B%7B%22name%22%3A%22Brand%22%2C%22value%22%3A%5B%22MONIER%22%5D%7D%5D
Technical descriptionhttps://www.bmigroup.com/nl/downloads/technische-documentatie/?filters=%5B%7B%22name%22%3A%22Brand%22%2C%22value%22%3A%5B%22MONIER%22%5D%7D%5D
Tendering informationhttps://www.bmigroup.com/nl/diensten/online-tools/bestekservice-bmi-monier/

Related

Material mainCeramics
Manufactured inGermany
Weight Net (Kg)2.8

Classification

BIMobject CategoryConstruction - Roof
IFC classificationRoof
ETIM CodeEC003150
ETIM NameRoof tile
Uniclass 2015 CodePr_25_93_72_12
Uniclass 2015 DescriptionClay interlocking tiles
CSI MasterFormat 2014 Code07 32 13
CSI MasterFormat 2014 TitleClay Roof Tiles
OmniClass Number23-13 39 17 11
OmniClass TitleClay Roof Tiles

Region availability

Europe
Netherlands
