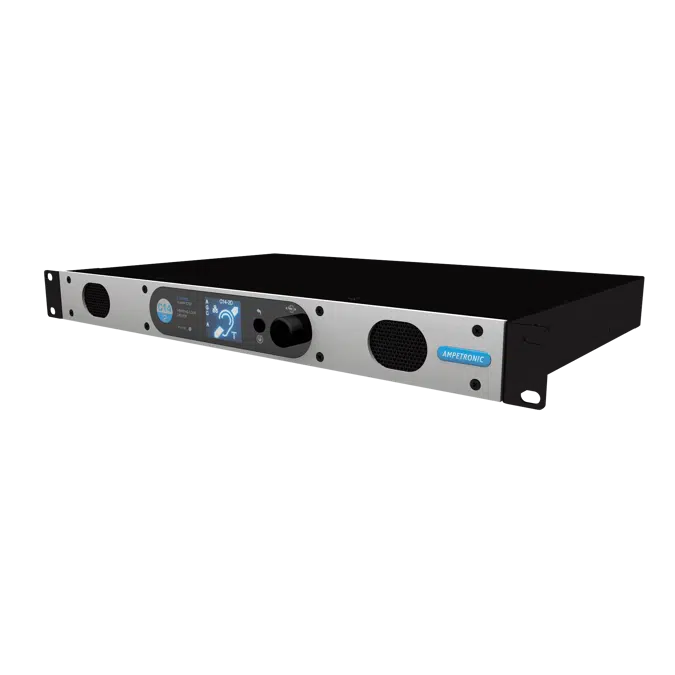

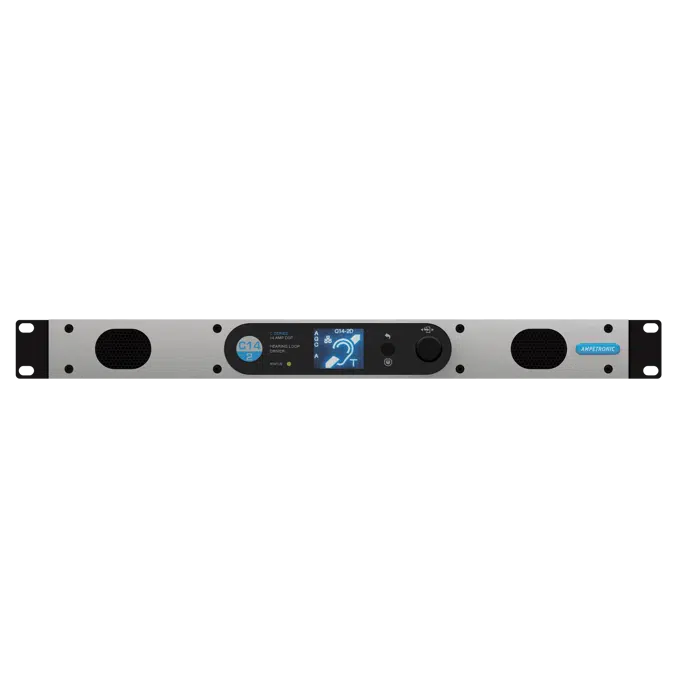

C14-2 MultiLoop Hearing Loop Driver

The C14-2 Series hearing loop drivers from Ampetronic mark a substantial development in assistive listening technology. C Series units feature digital signal processing and networking functionality, and enable fast, accurate setup and adjustment via a very simple and easy to use user interface.

Ampetronic has engineered the C Series to offer the high end performance, consistency and certainty of results usually associated with top of the range hearing loop drivers. Class ‘D’ drivers built into the C Series ensures low running and maintenance costs.

Network and Dante versions enable installers, technicians and facilities managers to remotely control the driver and monitor its condition status along with resistance and induction measurements. Fault condition alerts via email or Telnet provide reassurance that an operator will be informed of any issues with performance delivery.

The C14-2 features 14 Amps_RMS current loop output, plus ample voltage headroom, making it suitable for a wide range of applications. Installation can be performed with total confidence; unique, multi-stage filtering ensures compatibility with other systems and global EMC regulations. These products are designed to form part of a system that can meet all of the requirements of the international loop performance standard IEC60118-4, and the relevant parts of IEC TR 63079.

C-Series Multiloop Driver 14A 120v/230v

Part code: C14-2N (Networked), C14-2D (Dante)

The new C14-2, our new flagship driver, is particularly impressive with a massive 14A_RMS / 48V_RMS making it the most powerful hearing loop driver on the market today. The higher voltage that the C14-2 offers enables you to drive more current, further, perfect for areas of high metal loss or in large venue situations where the driver is further from the loop.

Known for their simple interface, connectivity, ease of installation and powerful monitoring and maintenance tools, the C Series can now meet any hearing loop requirement.

C14-2 Series hearing loop drivers applications include:

• Lecture Theatres & Conference facilities
• Stadia, Sports Halls, Cinemas & Theatres
• Courts Rooms, Airports & Railway Stations

Features:

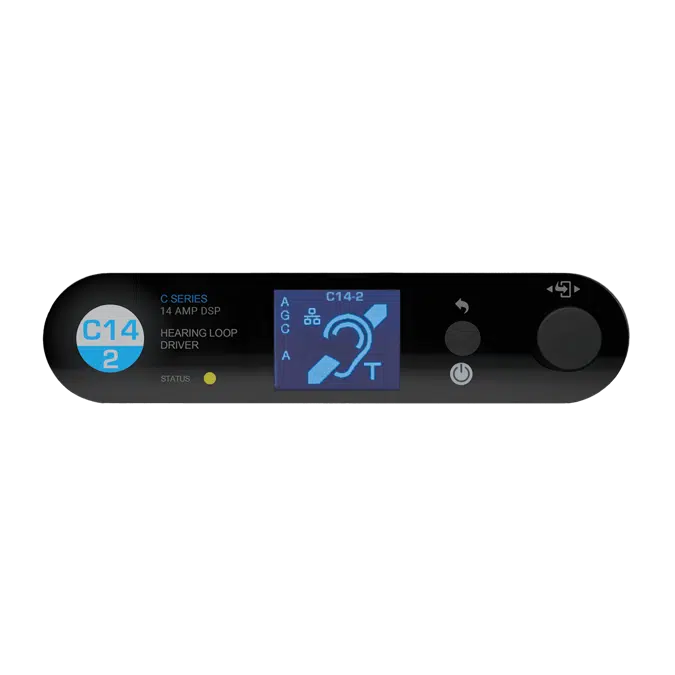

• Simple digital interface for accurate adjustment
• Network and stand-alone options
• Networking with browser interface for remote reporting, adjustment, active status monitoring and remote fault reporting via email or Telnet
• Dual outputs featuring accurate and stable 90° phase shift
• Built-in test tones
• Compatible with Loopworks Measure LoopLink for direct and automated driver control
• Clear indicators and system diagnostics
• Compact 1U rack mount unit with internal power supply
• Optimised for speech frequencies with unmatched intelligibility and capable of high quality musical reproduction

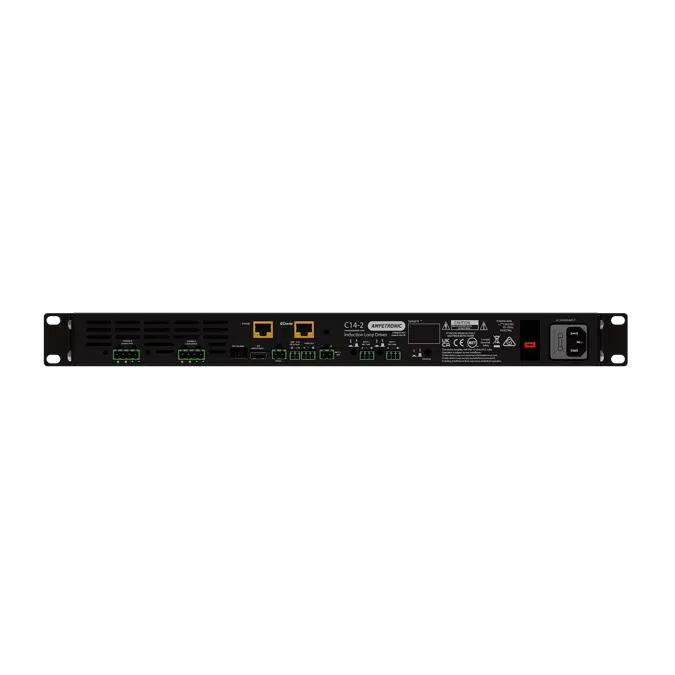

• Industry standard Phoenix connectors
• Data compliant with IEC 62489-1 Standard
• 100V line input
