Architectural Surface-Mount LED Linear Panel Light
Architectural Surface-Mount LED Linear Panel Light
Architectural Surface-Mount LED Linear Panel Light
Architectural Surface-Mount LED Linear Panel Light
    Alcon Lighting

    Architectural Surface-Mount LED Linear Panel Light

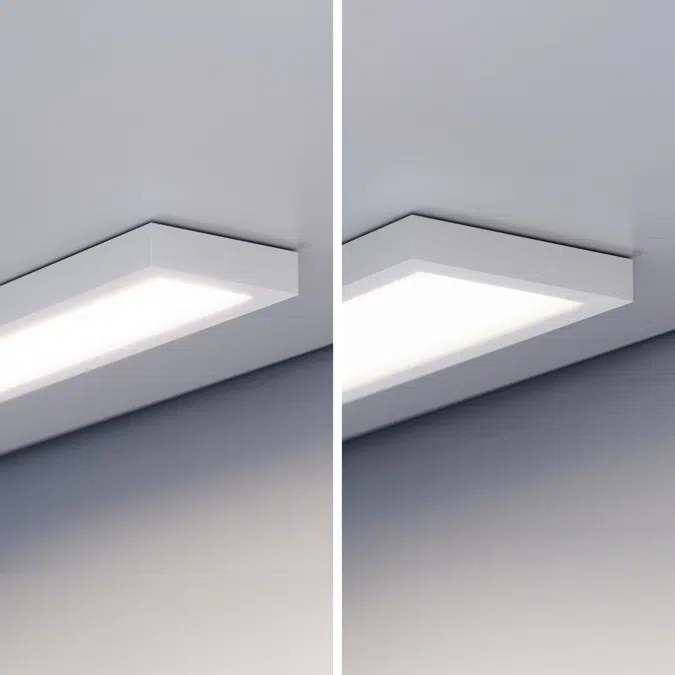

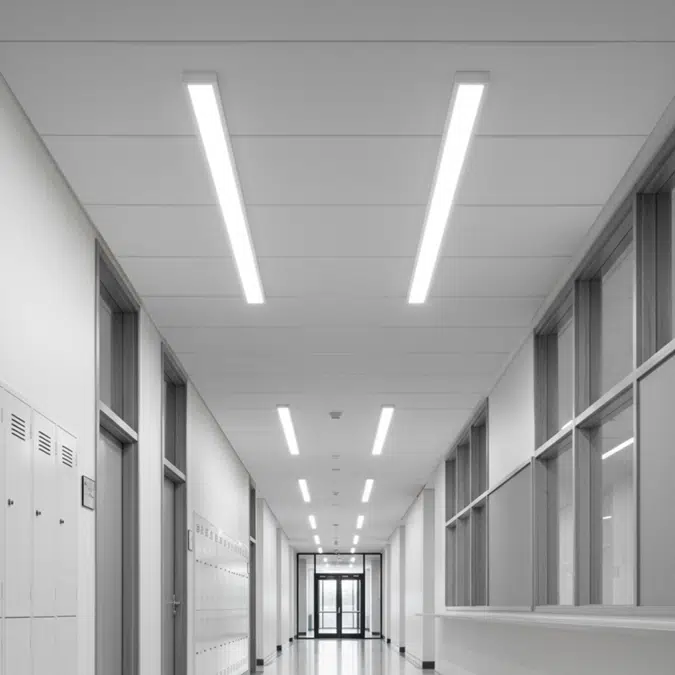

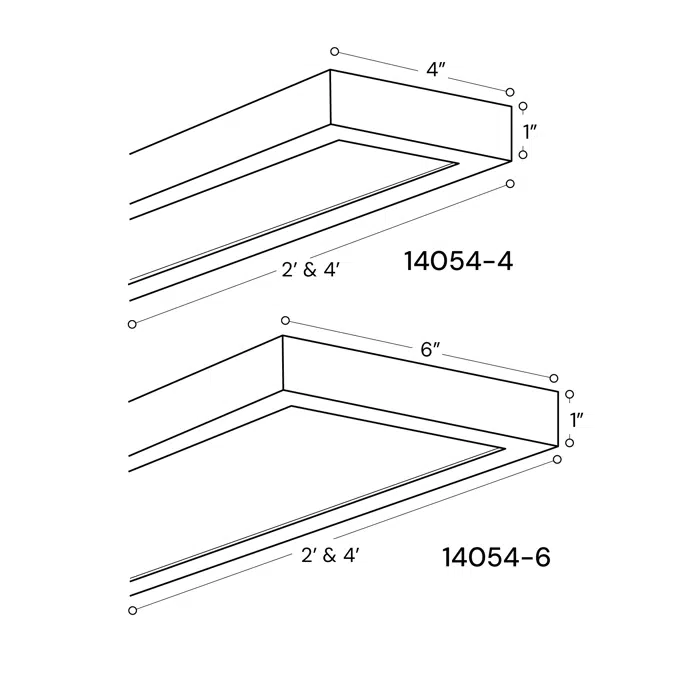

    Alcon Lighting's 14054-S architectural surface-mount LED linear panel light delivers versatile illumination for offices and commercial interiors. Available in 4-inch and 6-inch widths with 2-foot or 4-foot lengths, this flat panel light features a white-framed edge for a clean architectural look. Both sizes offer 0-10V dimming (100-10%) and field-adjustable color temperatures of 3000K, 3500K and 4000K. The 2-foot model is available as a 20W fixture, while the 4-foot model includes a wattage-selectable switch with 5W, 7.5W or 10W per foot.
    Specification

    • Construction: Sturdy extruded aluminum housing; also serves as a heat sink to extend lifespan

      Finish: White

      Color temperature (CCT): Field-selectable 3000K/3500K/4000K

      Wattage: Field-selectable 5W/7.5W/10W (4'), 20W (2')

      Driver: 0-10V dimming down to 10%

      Voltage: 120-277V AC

      CRI: 80+

      Optional features: 8W emergency backup battery, occupancy sensor

      Life: 50,000 hours

      Listings: cULus listed for damp locations

      Warranty: 5 years carefree for parts & components (labor not included)

    Technical specification
    • Unique ref.14054-s-panel-light
    • Product familyIndoor Lighting
    • Product groupSurface-Mounted Ceiling Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
