RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight
RGBW Color-Changing LED Ring Pendant Chandelier Downlight

    RGBW Color-Changing LED Ring Pendant Chandelier Downlight

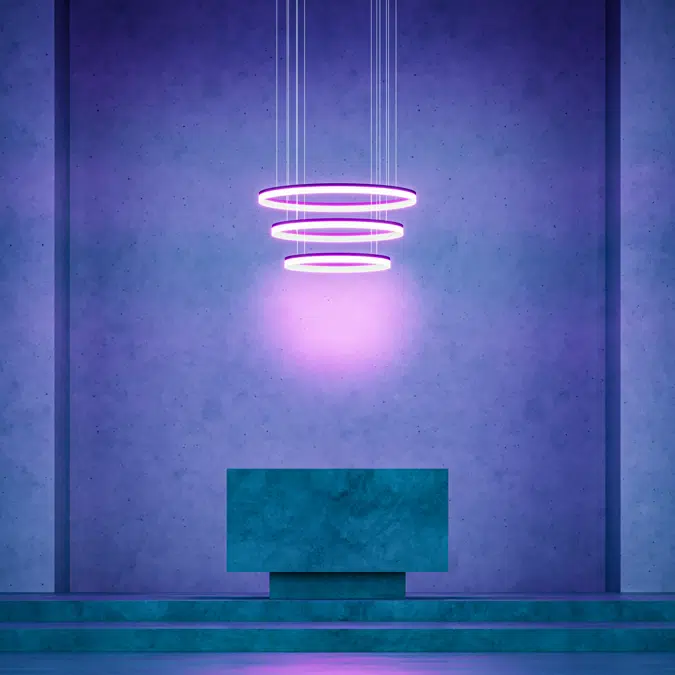

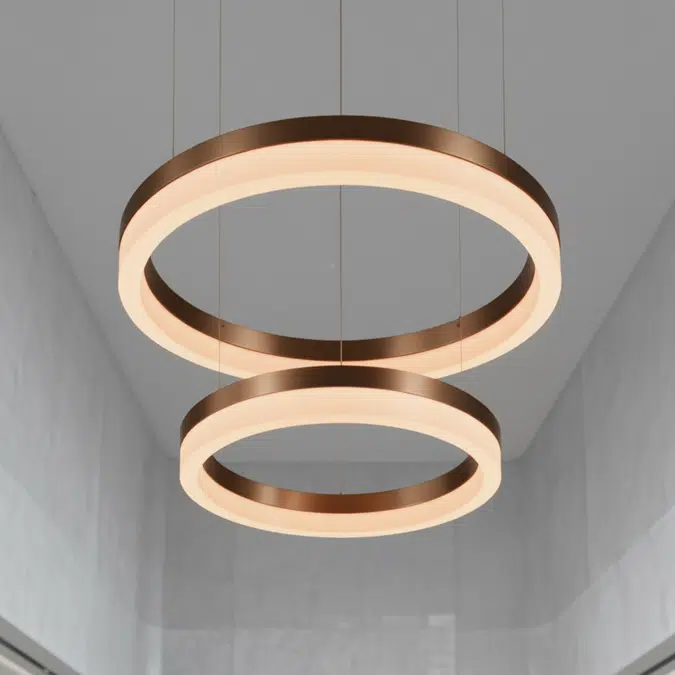

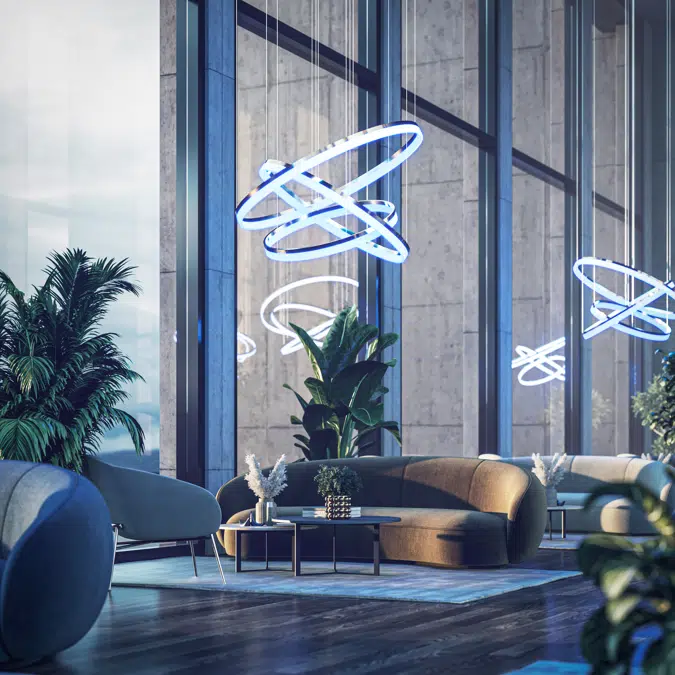

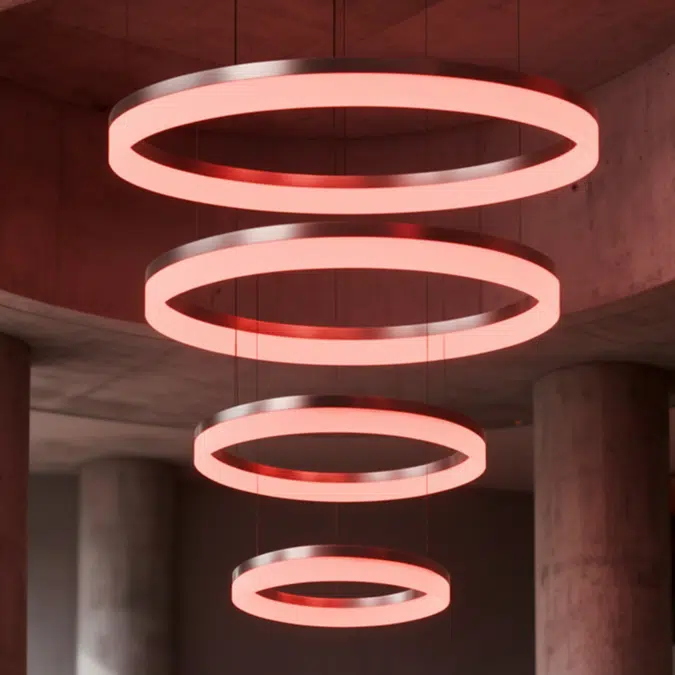

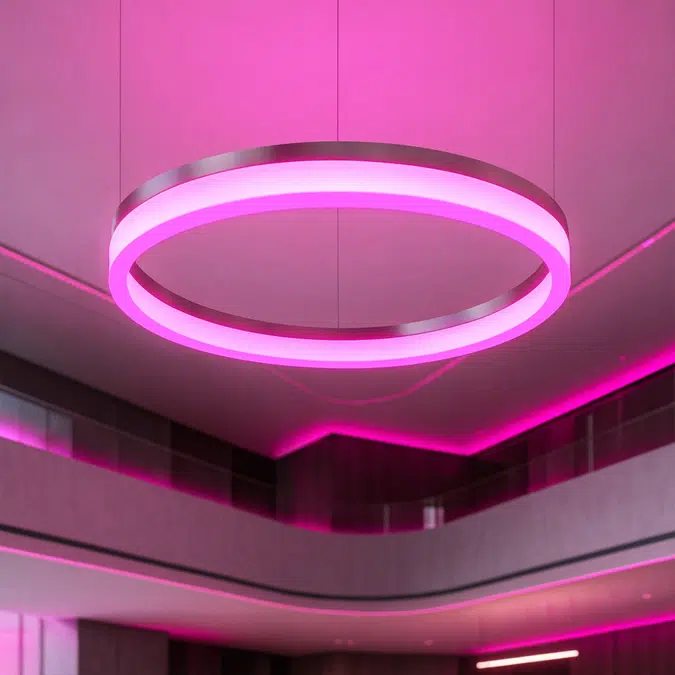

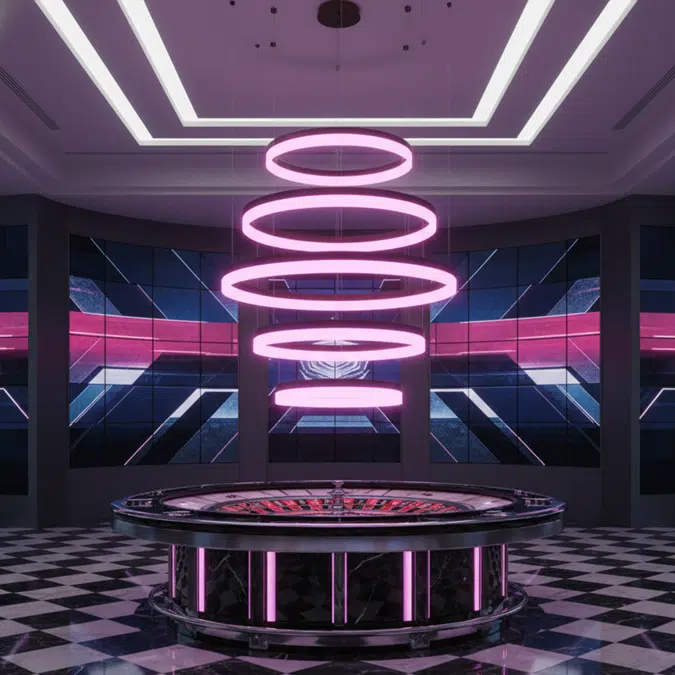

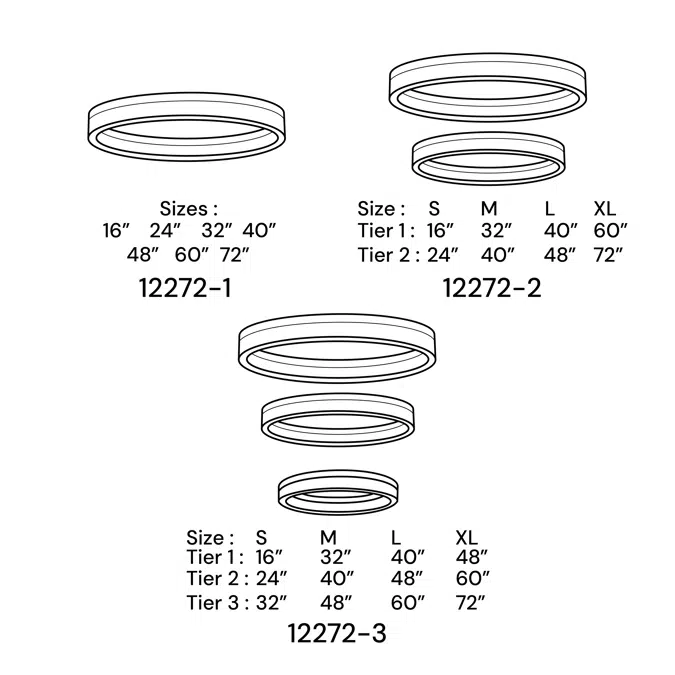

    Alcon Lighting’s 12272-RGBW series LED ring pendant chandelier delivers RGBW color-changing downlighting for commercial and hospitality interiors. Available with one, two, three, four or five tiers, the chandelier features extruded aluminum rings with high-transmittance acrylic lenses providing 80+ CRI illumination. RGBW control options include smartphone or voice app, handheld remote and wall controls. Each model comes standard with a round driver and RGBW+4K, with remote emergency backup options available. For optimal color consistency, the series functions best within series S. The suspension system includes a standard 5-foot aircraft cable with extended kits for high ceilings, making this chandelier ideal for hotels, restaurants, retail spaces and offices.
    Specification
    • Construction: Seamless aluminum frame

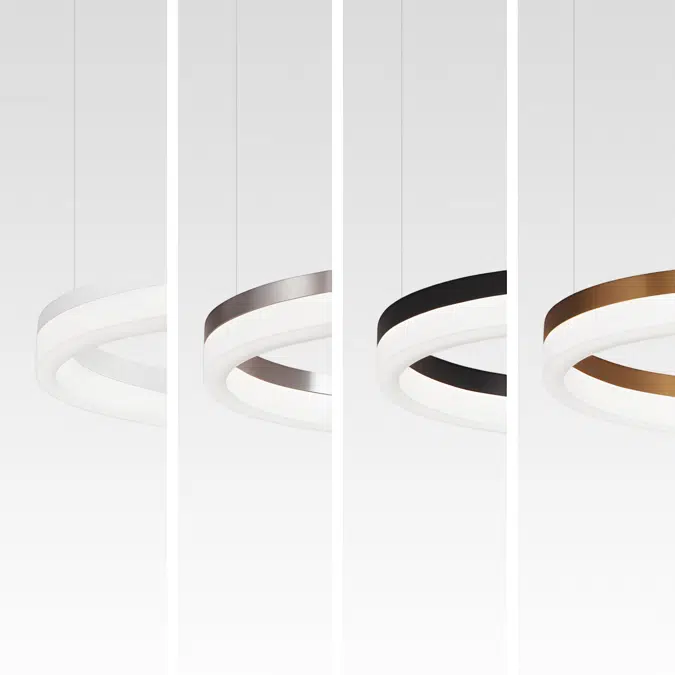

      Finish: While, black, silver, oil rubbed bronze, orange, yellow, fire engine red, platinum, rose gold, Spanish gold

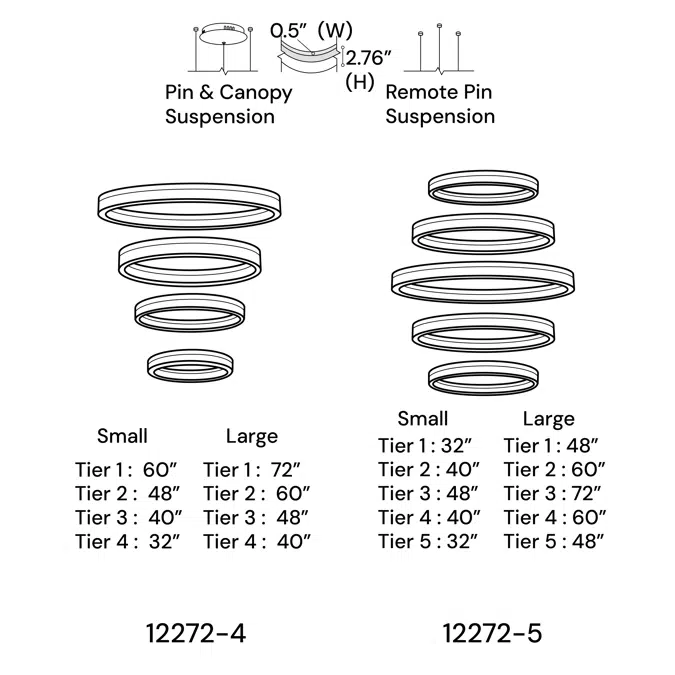

      Mounting: 5' to 20' adjustable aircraft cable

      Lens: High transmittance acrylic

      Voltage: 100-277V

      Color temperature (CCT): Field-selectable 3000K/3500K/4000K, CCT tuning (3000K-4000K), RGB+W (3000K), RGB+W (4000K) – for optimal color control consistency, this product works best within Series S

      Beam angle: 120°

      Lumens: 85 lm/W

      Power factor: >0.97

      CRI: 80+

      Dimming (static CCT): 0-10V dimmable

      RGBW/CCT controls: DMX, ZigBee control

      Optional features: CCT tuning wall control, RGBW wall control, RGBW/CCT handheld remote, 5W/10W/17W remote emergency battery backup

      Life: 100,000 hours

      Warranty: 5 years carefree for parts & components (labor not included)

      Listings: cULus, FCC listed, RoHS compliant, Dry location.

    Technical specification
    • Unique ref.12272-rgbw-ring-chandelier
    • Product familyIndoor Lighting
    • Product groupPendant Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
    Classification
    • BIMobject CategoryLighting - Chandelier
