Steam-Rated Flexible LED Cove Strip Light
Steam-Rated Flexible LED Cove Strip Light
Steam-Rated Flexible LED Cove Strip Light
Steam-Rated Flexible LED Cove Strip Light
Steam-Rated Flexible LED Cove Strip Light
Steam-Rated Flexible LED Cove Strip Light

    Steam-Rated Flexible LED Cove Strip Light

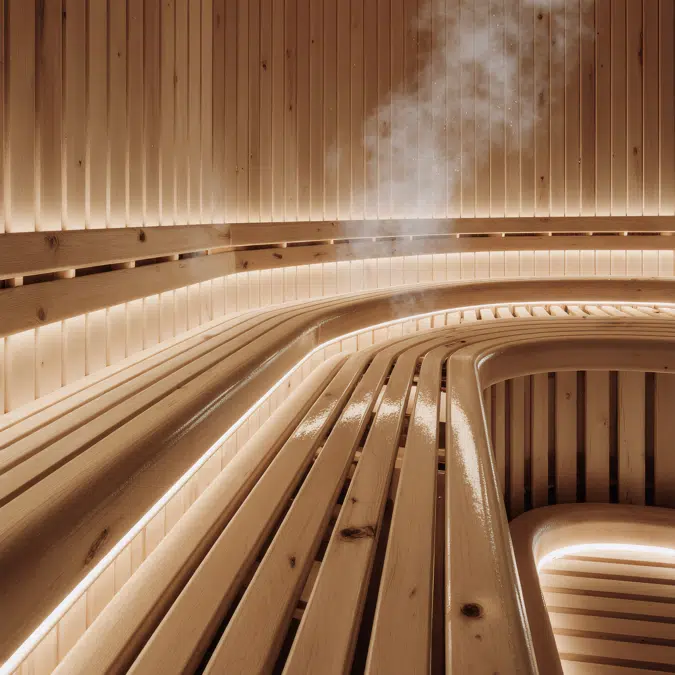

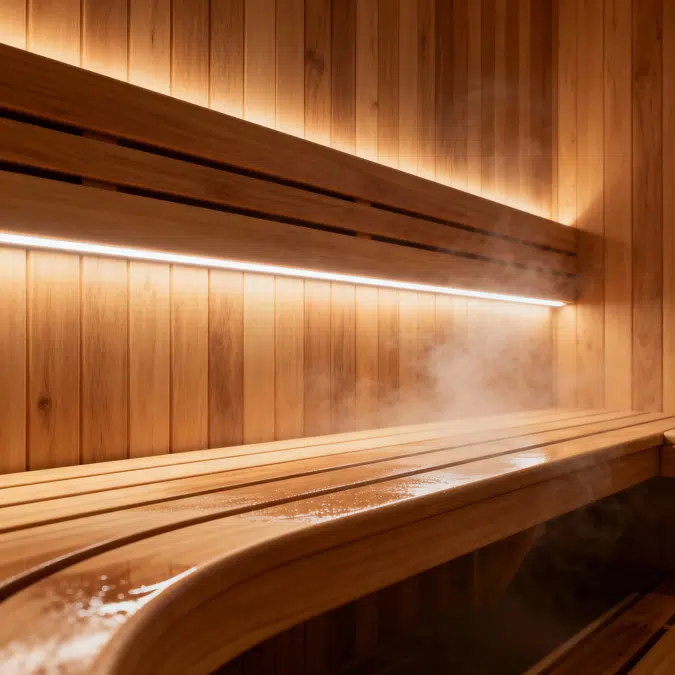

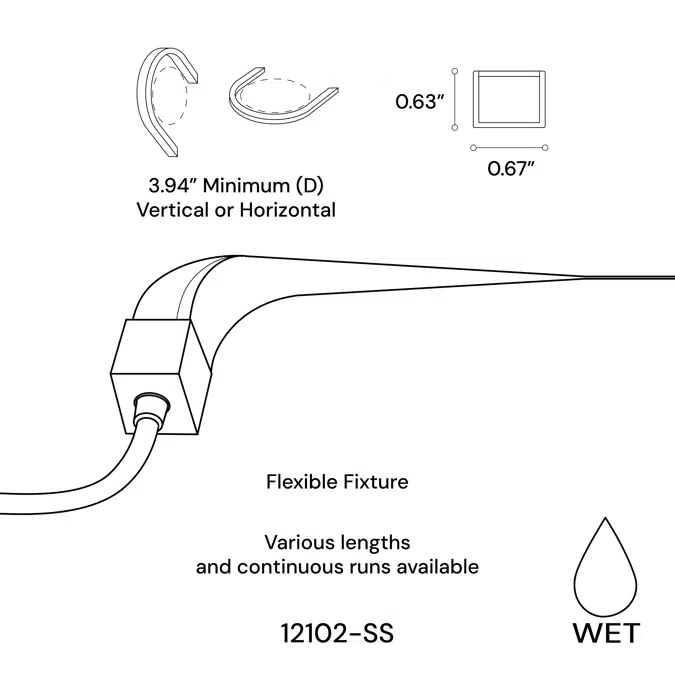

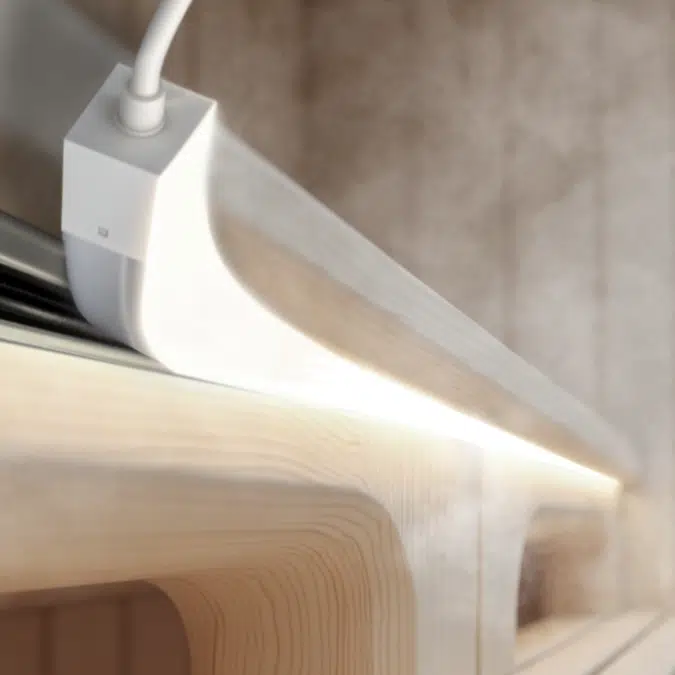

    Alcon Lighting’s 12102-SS steam-rated flexible LED cove strip light is engineered for wet and high-temperature environments such as saunas, steam rooms and spas. The IP67-rated flexible LED light strip features a diecast aluminum housing with a high-performance acrylic optic lens for durability and thermal dissipation. This 24V LED strip delivers 150 lumens per foot at 3 watts with 88+ CRI, operating up to 32 feet in a single run. The flexible design bends around tight curves without damage, supporting versatile cove lighting and architectural detailing. A dimmable 4-in-1 remote driver (TRIAC, ELV, MLV, 0-10V) ensures control compatibility, making the sauna lighting strip ideal for wellness and hospitality applications.
    Specification
    • Construction: Housing and electrical compartments made from die-cast aluminum

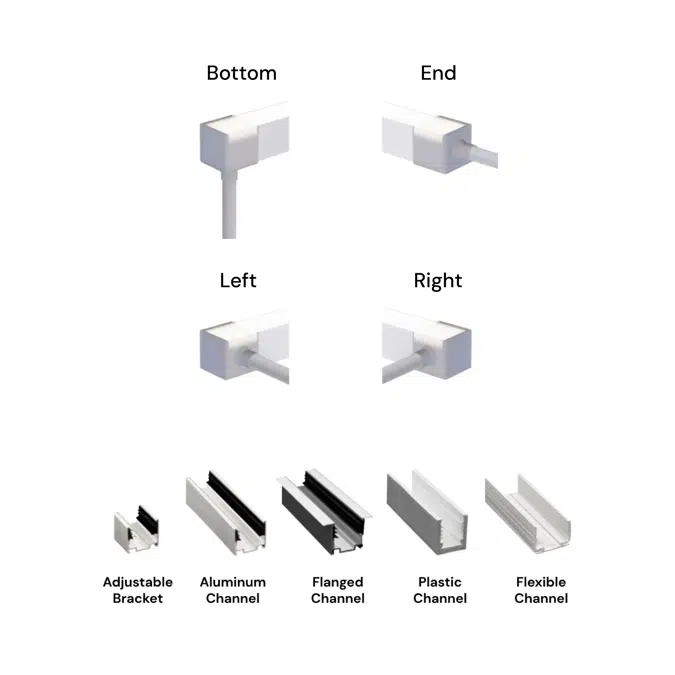

      Mounting channels: 2" aluminum, 39" aluminum, 39" plastic, 39" recessed profile, 39" flexible profile (white or black)

      Max run length: 32 ft.

      Lens: High-performance acrylic optic securely attached to internal heat sink for maximum thermal dissipation

      Voltage: 24V LED Fixture, 100-277V LED Driver

      Remote driver: Dimmable 4-in-1 Triac, ELV, MLV and 0-10V

      Wattage: 3 W/ft

      Lumens: 150 lm/ft

      Color temperature (CCT): 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, Red, Green, Blue, Amber, Pink, Yellow

      CRI: 88+

      Life: 50,000 hours

      Operating temperature: -4ºF to 194ºF (-20ºC to 90ºC)

      Listings: cULus listed, DLC listed, Suitable for wet location, IP67 Rated

      Warranty: 5 years carefree parts & components (labor not included)

    Technical specification
    • Unique ref.12102-ss-strip-cove-sauna-light
    • Product familyIndoor Lighting
    • Product groupCove Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
