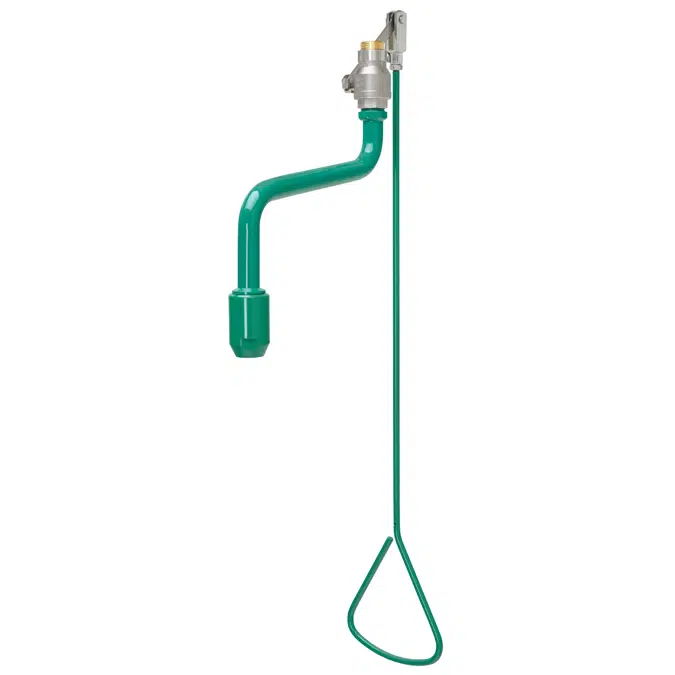

Emergency shower activated by a pull-rod FAID0009

Pull-rod operated emergency shower, for ceiling mounting, with water supply from the ceiling, valve operated by triangular handle, shower pipe with horizontal offset so that the handle is outside the water spray. Non-self-closing, the water flow is stopped by pushing up the handle. With wall bracket and emergency shower head, green EPS coated (RAL 6032). Complies with EN 15154, Part 1. Includes the "emergency shower" safety symbol on an adhesive label in compliance with ISO 3864, Part 1 and user instructions. Volumetric flow rate approx. 65 l/min at 1 bar pressure, approx. 110 l/min at 3 bar pressure, water connection G 3/4 B.

Specification

Volume flow rate at 3 bar 1.83 liter per second

Spout projection 195.00 mm

Type of fitting Ceiling installation

Type of connection Pipe connection

Technical specification

Unique ref.2030019182
Product familyEmergency showers
Product groupWhole body showers
TypeObject (single object)
Date of publishing2021-11-10
Edition number1

Links

Product urlhttps://kwc-professional.com/en/faid0009-emergency-shower-with-pull-rod_p2030019182

Material mainBrass
Designed inGermany
Manufactured inGermany
Weight Net (Kg)1.66

Classification

BIMobject CategorySanitary - Showers
IFC classificationSanitary Terminal
Uniclass 2015 CodePr_40_20
Uniclass 2015 DescriptionSanitary fittings and accessories
OmniClass Number23-29 37 15
OmniClass TitleEmergency Showers
