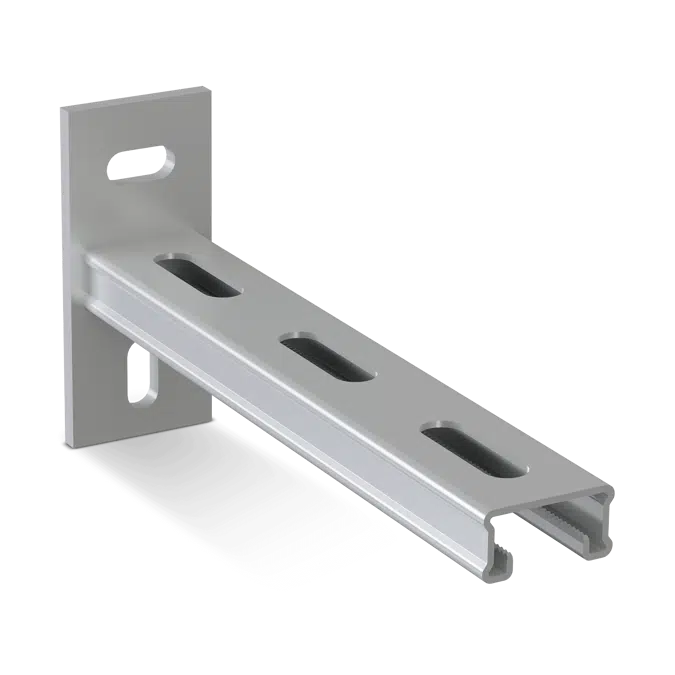

Usage: universal channel system for building fastening systems, with repeatable perforation and serrated edges in order to lock the accessories better, with cut centimetre scale on the channel side.
File contents:
MG2,0: Width = 41mm Height = 21mm
SS-MG2,0-240 L =240mm
SS-MG2,0-320 L =320mm
SS-MG2,0-400 L =400mm
SS-MG2,0-480 L =480mm
SS-MG2,0-560 L =560mm
SS-MG2,0-800 L =800mm
MF2,5: Width = 41mm Height = 41mm
SS-MF2,5-240 L =240mm
SS-MF2,5-320 L =320mm
SS-MF2,5-480 L =480mm
SS-MF2,5-560 L =560mm
SS-MF2,5-800 L =800mm
SS-MF2,5-1040 L =1040mm
MH2,5: Width = 41mm Height = 62mm
SS-MH2,5-320 L =320mm
SS-MH2,5-480 L =480mm
SS-MH2,5-560 L =560mm
SS-MH2,5-800 L =800mm
SS-MH2,5-1040 L =1040mm
