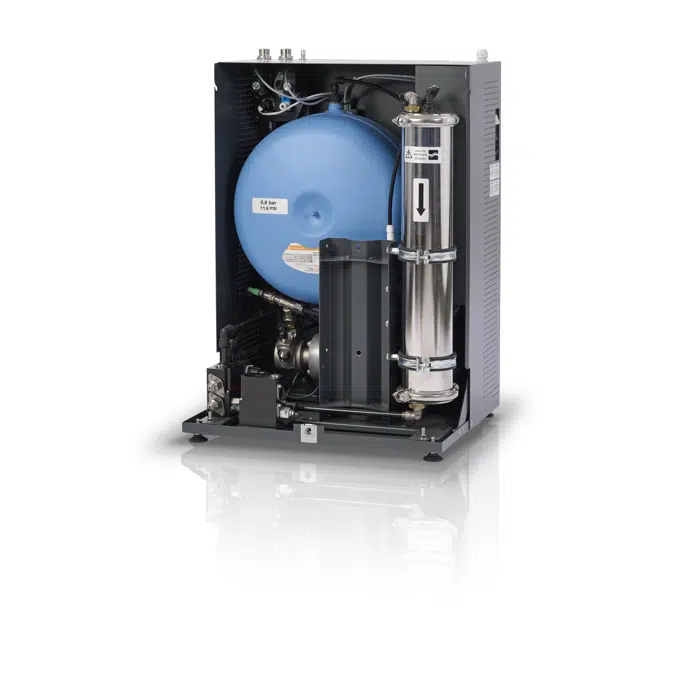

RO-E - Reverse Osmosis

Reverse osmosis (RO) is an effective and economic way of removing minerals from water. The Condair RO-E has been developed specifically to provide operational, energy and maintenance benefits to Condair humidifiers.

By removing the minerals from a humidifier’s supply water, the limescale that builds-up in the system is virtually eliminated. This results in a much lower level of required maintenance in all types of humidifier and reduced energy consumption in steam humidifiers.

Steam humidifiers that run on mains water need to drain their boiling chambers occasionally to maintain a low mineral content and reduce limescale build-up. By using RO supply water, the steam humidifier’s boiling chamber does not require this regular drain. Therefore it uses less energy to maintain the water’s temperature.

As the water temperature is consistent, the steam output is also consistent, thus improving humidity control. By using resistive steam humidifiers fed by RO water, ±1%RH control can be achieved.

Other benefits of using RO water with humidifiers include increasing the life of the evaporative pads in evaporative humidifiers and preventing dust carry-over in spray humidifiers.

Specification

Condair RO-E
- Voltage: 230V
- Frequency: 50 Hz
Options:
- All models show the optional housing cover
Version:
- Version + is for use with adiabatic humidifiers
- Models with safety valve are mandatory for CE markets. Note: RO-E 200 and 300 require the safety valve by the external pressure tank. Please consider the instruction in the installation manual!
RO-E 40
Pure water output at 5 °C water temperature against 1 bar: 58 l/hr
Pure water output at 15 °C water temperature against 1 bar: 98 l/hr

RO-E+ 40 (for adiabatic humidifiers)
Pure water output at 5 °C water temperature against 1 bar: 36 l/hr
Pure water output at 15 °C water temperature against 1 bar: 59 l/hr

RO-E 100
Pure water output at 5 °C water temperature against 1 bar: 105 l/hr
Pure water output at 15 °C water temperature against 1 bar: 181 l/hr

RO-E+ 100 (for adiabatic humidifiers)
Pure water output at 5 °C water temperature against 1 bar: 67 l/hr
Pure water output at 15 °C water temperature against 1 bar: 114 l/hr

RO-E 200
Pure water output at 5 °C water temperature against 1 bar: 200 l/hr
Pure water output at 15 °C water temperature against 1 bar: 352 l/hr

RO-E+ 200 (for adiabatic humidifiers)
Pure water output at 5 °C water temperature against 1 bar: 124 l/hr
Pure water output at 15 °C water temperature against 1 bar: 218 l/hr

RO-E 300
Pure water output at 5 °C water temperature against 1 bar: 285 l/hr
Pure water output at 15 °C water temperature against 1 bar: 513 l/hr

RO-E+ 300 (for adiabatic humidifiers)
Pure water output at 5 °C water temperature against 1 bar: 171 l/hr
Pure water output at 15 °C water temperature against 1 bar: 312 l/hr

Technical specification

Unique ref.condair-ro-e
Product familyWater Treatment
Product groupReverse Osmosis
TypeObject (single object)
Date of publishing2025-10-02
Edition number1
Height (mm)792
Width (mm)587
Depth (mm)484

Links

Product urlhttps://www.condairgroup.com
Installation instructionshttps://www.condair.co.uk/condair-ro-water-treatment-system
Technical descriptionhttps://www.condair.co.uk/condair-ro-water-treatment-system

Material mainPowder coated steel
Designed inSwitzerland
Manufactured inGermany

Classification

BIMobject CategoryHVAC - Other
IFC classificationFilter
Uniclass 2015 CodePr_60_55_97_72
Uniclass 2015 DescriptionReverse osmosis units
OmniClass Number23-39 41 13 15
OmniClass TitleReverse Osmosis and Nanofiltration Membrane Equipment
