    Round Recessed LED Downlight

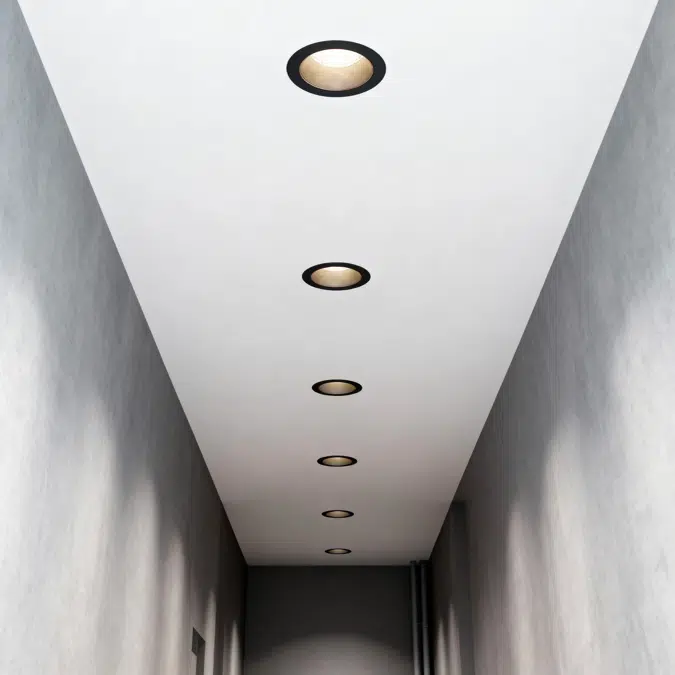

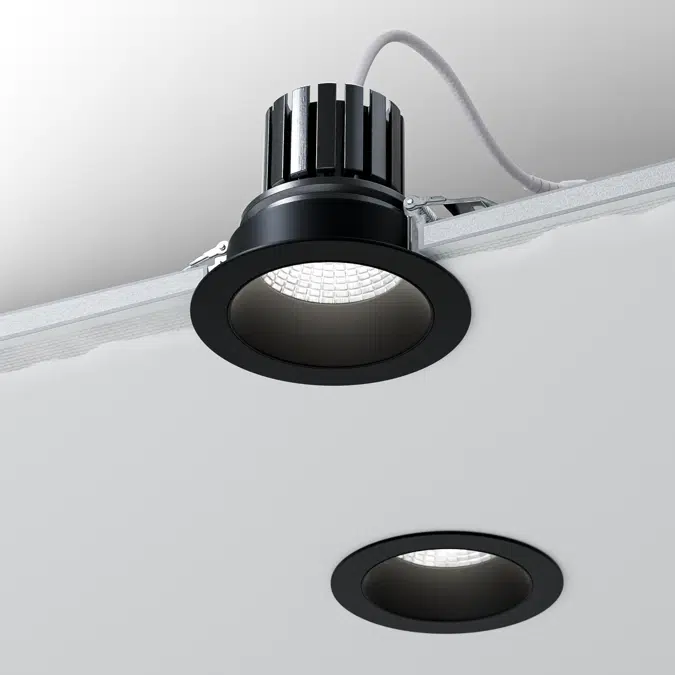

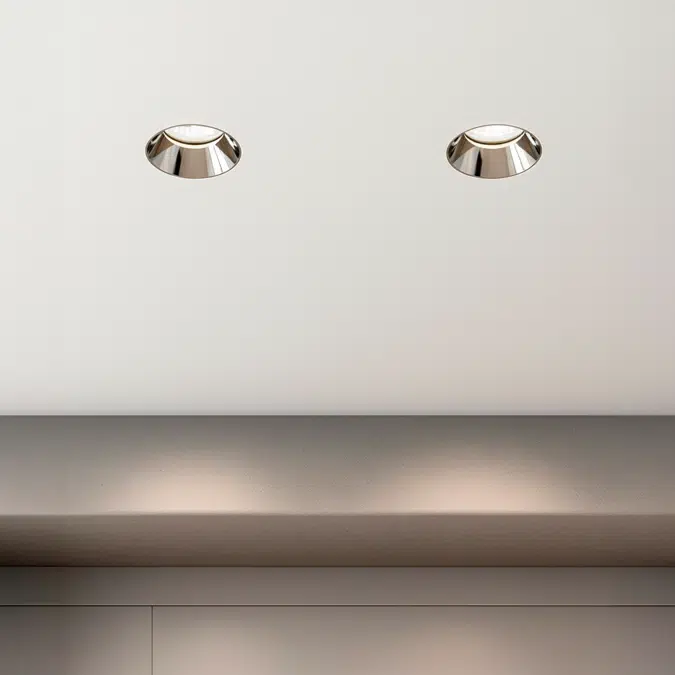

    Alcon Lighting’s 14143 round recessed LED downlight delivers versatile, high-performance illumination for commercial, hospitality and residential applications, with 2700K/3000K/3500K/4000K/5000K color temperature selection. Constructed from durable diecast aluminum with a white powder-coat finish, the ceiling light is IC-rated for no-housing installation and includes a junction box. The series offers trimless and trim flange options with five reflector finishes and an optional frosted lens for glare reduction. Each downlight provides a 24° beam angle with 90 CRI, 10W output delivering 700 lumens and dimming to 10% via TRIAC. A built-in color temperature selection switch allows preset adjustments from 2700K to 5000K. The fixture is Energy Star-rated, Title 24-compliant and suitable for damp locations.

    Specification

    • Construction: Type IC-rated, no housing required. Die-cast aluminum with white powder-coat finish; junction box included

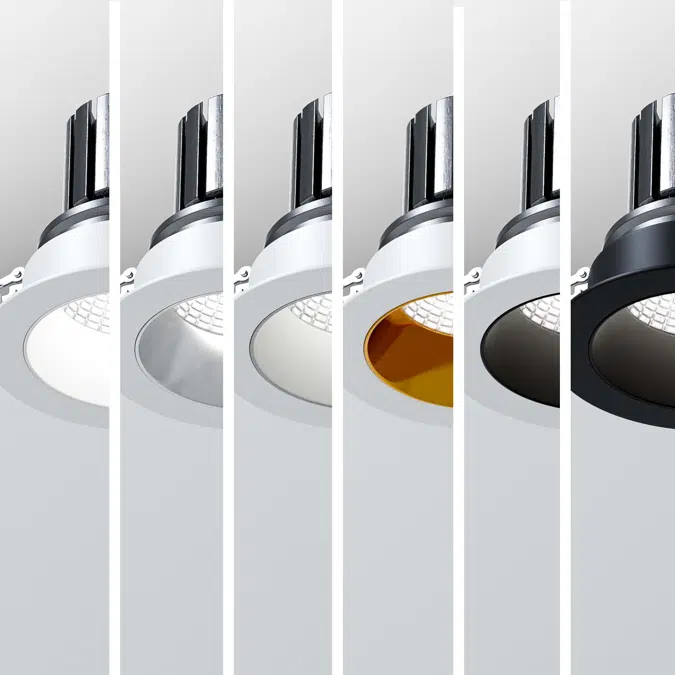

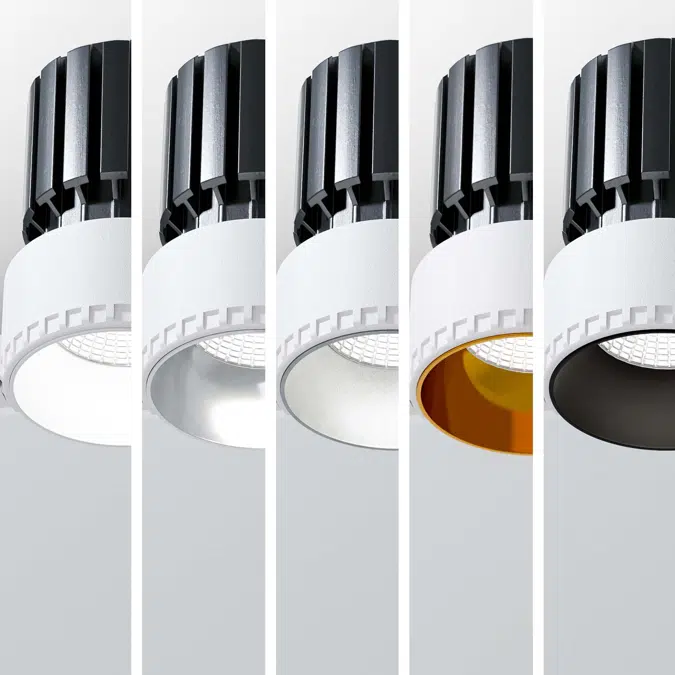

      Finish: Matte white, matte black, clear, matte gold, matte silver

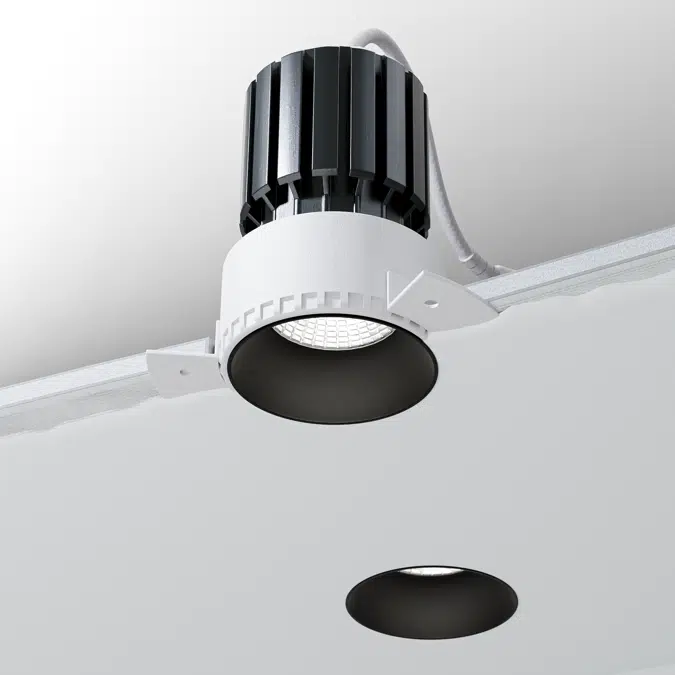

      Style: Trimless or flanged

      Beam angle: 30°

      CRI: 90+

      Driver: TRIAC dimming (100% to 10%)

      Operating temperature: 104°F maximum

      Voltage: 120VAC

      Lumens: 700 lm, Up to 70 lm/W

      Wattage: 10W

      Color temperature (CCT): Field-selectable 2700K/3000K/3500K/4000K/5000K

      Emergency battery: Internal 90-minute battery with test switch

      Lifespan: 50,000 hours

      Listing: ETL, JA8/Title 24, Energy Star, RoHS, damp location suitable

      Warranty: 5 years carefree for parts & components (labor not included)

    Technical specification
    • Unique ref.14143-r-recessed-downlight
    • Product familyIndoor Lighting
    • Product groupRecessed Lighting
    • TypeObject (single object)
    • Date of publishing2025-11-21
    • Edition number1
