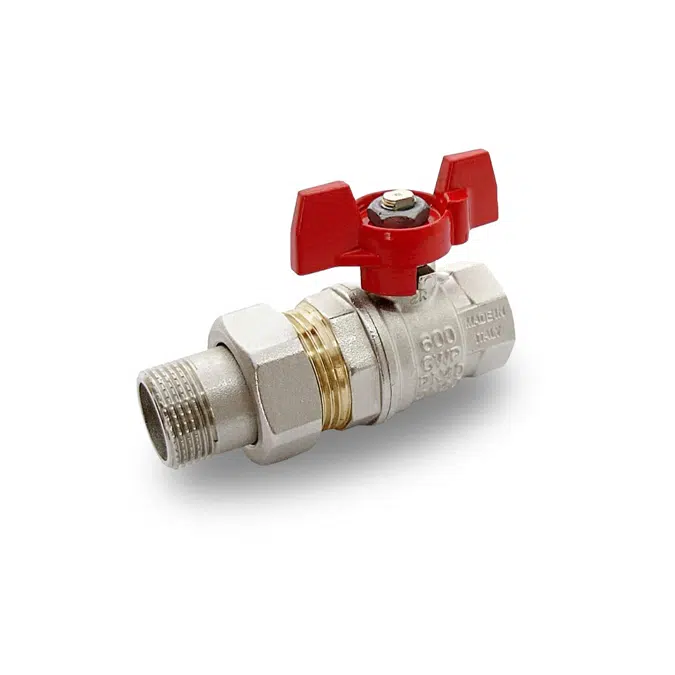

S9036 BRASS BALL VALVE

QUALITY

• 24h 100% seal test guaranteed

• Dual sealing system allows valve to be operated in either direction making installation easier

• No metal-to-metal moving parts

• No maintenance ever required

• T-handle clearly shows ball position

• Silicone-free lubricant on all seals

• Chrome plated brass ball for longer life

• Handle stops on body to avoid stress at stem

THREADS

• ISO 228 female by union male

FLOW

• Full port to DIN 3357 for maximum flow

WORKING PRESSURE & TEMPERATURE

• 40 bar (600 PSI) non-shock cold working pressure

• -40°C to +150°C (-40°F to +302°F)

• WARNING: freezing of the fluid in the installation may severely damage the valve

OPTIONS

• Stem extension

• Oval lockable handle

• Patented locking device

• Stainless steel handle (1.4016 / AISI 430)

• Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection

• Stubby handle

• RuB memory stop is designed to be installed with our stubby handle
