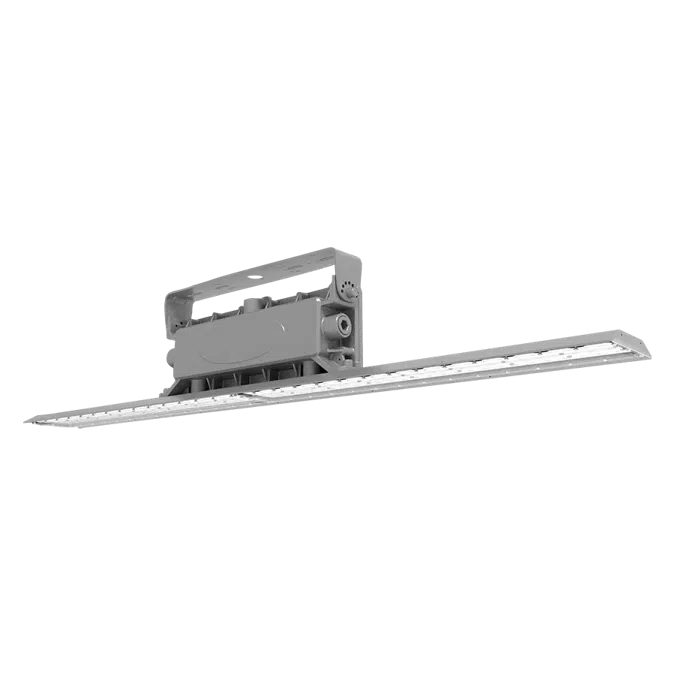

Laden Sie kostenfreie BIM-Inhalte aus BIMobject HAZL34 Linear High Bay Lighting Hazardous Locations

COMPLIANCE
- UL Listed
  - Suitable for wet locations. Certified to UL standard 1598 and 844
- DLC Listed
  - This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
- IP Listing
  - IP66 rated
LED CHARACTERISTICS
- LEDs
  - Long-life, high-efficacy, discrete, surface-mount LEDs
- Color Consistency
  - 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
- Color Uniformity
  - RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
CONSTRUCTION
- Cold Weather Starting
  - The minimum starting temperature is -40°C (-40°F)
- Maximum Ambient Temperature
  - Suitable for use in up to 65°C (149°F)
- Mounting
  - All models come standard with three mounting options—pendant mount (pendant by others), chain mount, and a yoke bracket for surface mount. A separate kit is available for ceiling mount.
- Housing
  - Aluminum
- Reflector
  - Polycarbonate
- Gasket
  - Silicone
- Tilt Increment
  - 45° (yoke bracket)
- Green Technology
  - Mercury and UV free. RoHs-compliant components.
- Finish
  - Formulated for high durability and long lasting color
- EFFECTIVE PROJECTED AREA (EPA)
  - EPA: 1.0008 ft², 1.992 ft², 1.992 ft²
ELECTRICAL
- Drivers:
  - Constant Current, Class 2, Class P, 120-277V, 50/60 Hz
    - Various specifications listed for different wattages
  - Constant Current, Class 2, Class P, 480V, 50/60 Hz
    - Various specifications listed for different wattages
- Dimming Driver:
  - Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
- THD:
  - Various specifications listed for different wattages
- Power Factor:
  - Various specifications listed for different wattages
- Surge Protection
  - L/N-PE: 10kV, L-N: 6kV
- Temperature Ratings:
  - Various specifications listed for different models
PERFORMANCE
- Lifespan:
  - 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
OTHER
- Buy American Act Compliance:
  - RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the BUY American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
- Warranty
  - The RAB 5-year, no-compromise warranty covers light output, color stability, driver performance, paint finish and labor. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

HAZL34 Linear High Bay Lighting Hazardous Locations
