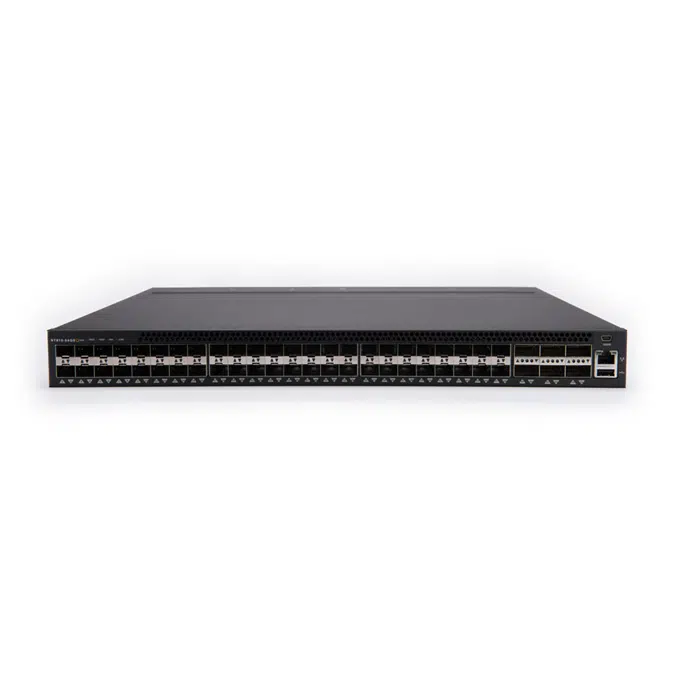

Software-Defined Data Plane (SDDP) 48 Port Dual SC PSU, front to back airflow - 1LAN-SDDP-48P

Airflow and FAN: Front-to-Back or Back-to-Front, 3+1 redundant FAN FRU

LED Indicators: Power, Status, Fan, PSU, Link status

Mounting/Installation Options: Rack Mount

Input Voltage: AC: 100V-240V~, 8-4A, 50Hz-60Hz, DC: 180V~310V

Power Supply: 1+1 Redundant 550W AC/DC PSU FRU

CPU: Rangeley C2558 2.4G 4-Core

Ports: 1x 10/100/1000BaseT Out-of-Band-Management Port, 1 x Mini USB serial console port with mini-USB to RJ-45 converter cable, 1 x USB 2.0 host, 48 x 10G SFP+, 6 x 40G QSFP+

Switch ASICS: Broadcom BCM56854 (Trident 2)

System Memory: DDR3 8GB with ECC SODIMM

Transceivers Supported: CR, CR4, SR, SR4

Flash Memory: 16 MBit/s

Latency: < 0.7 microsecond

Packet Buffer Memory: 12 MB

Switching Capacity: 1440

Environmental Conditions

Temperature Range, Operation: 0 C to 45 C (32 F to 113 F)

Relative Humidity, Operation: 5% to 95% (non-condensing)

Transceiver Type: CR, CR4, SR, SR4

Height: 44 mm (1.73 in)

Width: 440 mm (17.32 in)

Depth: 407 mm (16.02 in)

Weight: 9 kg

Units per Delivery: 1/1

Standards: CB - Emissions, CCC - Emission, FCC - Emission, RoHS6

Associated Uses: Software Defined LAN, SDLAN, Software Defined Network, SDN, Local Area Network, LAN, Fiber to the Edge, FTTE, Optical Switch, Data Plane, Fiber Switch, SFP Switch
