Standard: LPS 1175 C5 (SR3) Issue 8, BS1722-14: 2017, BS EN ISO 1461:2009, BS EN 13438:2013
Secured by Design - Police Preferred Specification
Product Reference: CLD LockMaster S3 Gate System

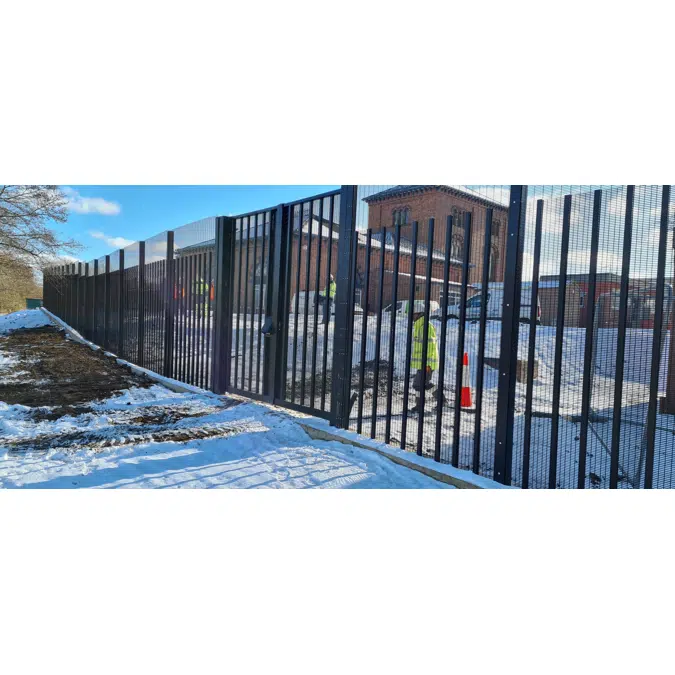

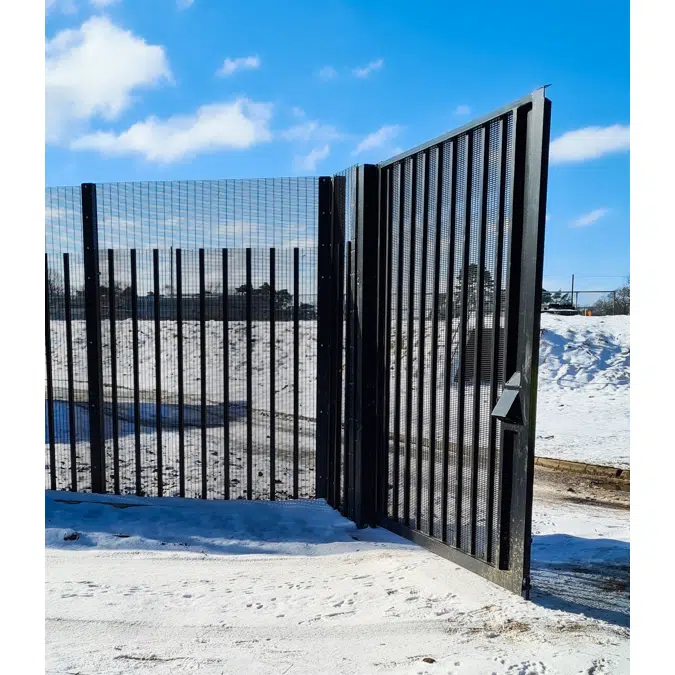

Description: Open mesh steel high security gate system with mesh infill, to match fencing
Configuration: Double leaf/ single leaf / opening inwards or outwards as required
Heights: 2440mm to 5000mm to match fence panel, Single leaf gates above 3000mm have lintel panel
Select as required
Nominal heights: 2.4m to 5m
Widths: To suit mesh infill panels:
Select as required Single leaf: 500mm minimum to 4000mm maximum
Double leaf: 1200mm to 8000mm maximum
Gate Frame: To suit mesh infill panels:
Vertical stiles: minimum of 50mm x 50mm x 3mm square hollow section
Horizontal rails: minimum of 50mm x 50mm x 3mm square hollow section
Galvanised and powder-coated to match fencing
Infill Panels: Options to be chosen from the following fencing systems (see fencing Q40 specification sheets for information)
CLD Securus S3
Locking: Slide bar with certified padlock
Hinges: 3 x hinge sets with min M20 eye bolts
Finish: Polyester powder-coated to minimum 80 microns.
Any RAL colour
Post dimensions: 80mm x 80mm min
Foundations: Set posts in holes 450mm square x 950mm deep min. Note: Contractor/ client is responsible for the foundation size suitable for the ground conditions
Warranty: Minimum of 15 years against manufacturing defects.
Notes: All dimensions are nominal, for further information please contact CLD Fencing Systems.
Information is correct at time of production. As part of our policy of continuous improvement, we reserve the right to alter product specification without notice.
To be read in conjunction with Preliminaries/General conditions
