Absen

NX Series - 16:9 Creative Slim Display

Google-Übersetzung,

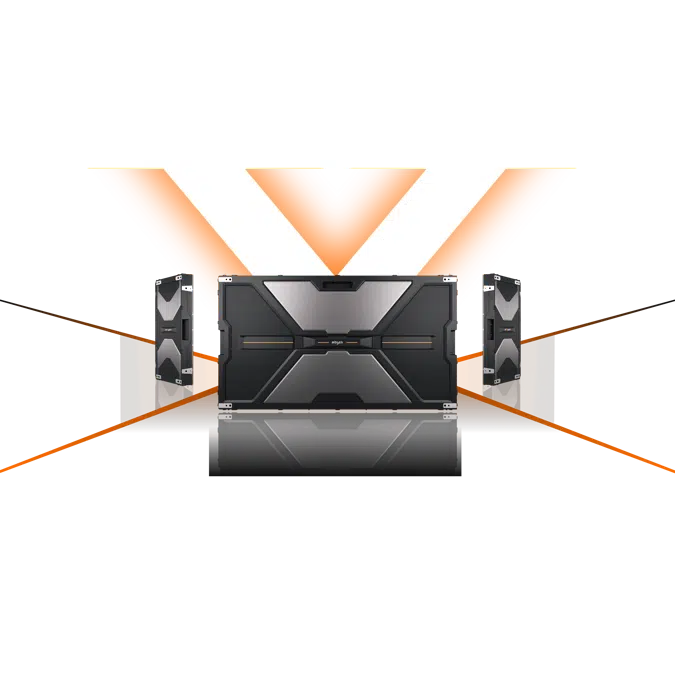

Als Symbol unendlicher Möglichkeiten wird der Buchstabe „X“ zum äußeren Designelement des Panels, und die beiden X bilden eine „Wabe“, ein Markenelement von Absen. Das einzigartige Design vermittelt Absens Vertrauen in seine Display-Kompetenz und Produktqualität.

Spezifikation

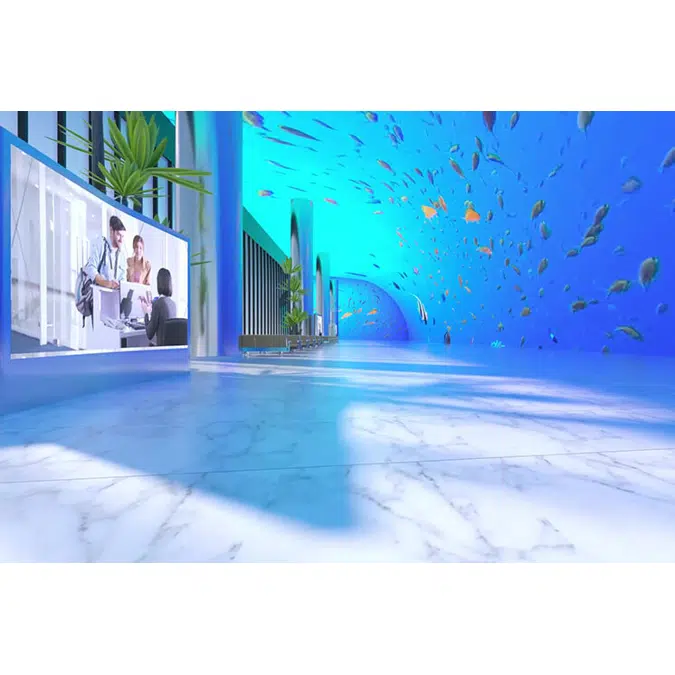

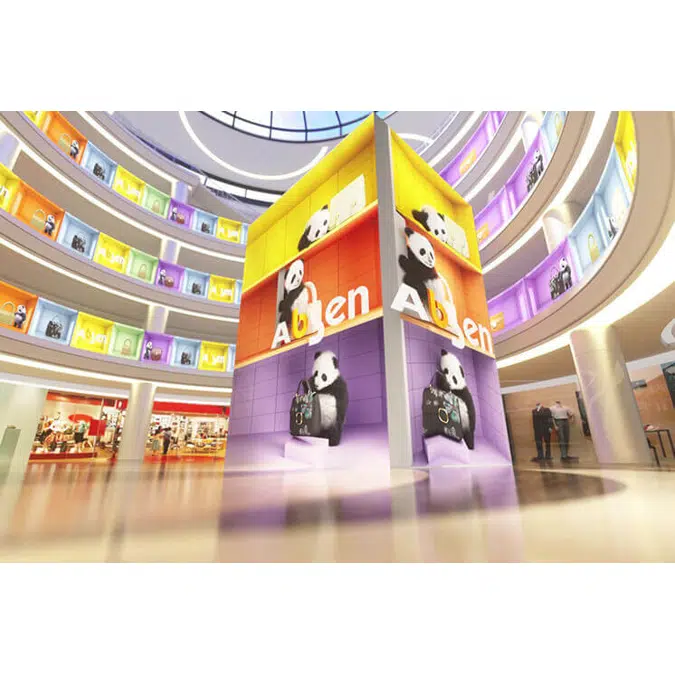

- The product has dual brightness configuration, the 800nits brightness configuration meets the needs of ordinary indoor display, and the 1500nits brightness(excluding NX1.5) configuration meets the indoor scenes with high ambient light, such as shopping mall atrium, corporate lobbies, etc.
- Large cabinet (960*540mm) supports signal and power backup, dual receiving card and dual power supply configuration.
- The cabinet (960*540mm) pixel design meets the 16:9 ratio.
- Adopt advanced blanking circuit design, no "caterpillar", "ghosting" phenomenon.
- Using PWM constant current output high-end chip to achieve high grayscale at low brightness, full color and accurate details.
- Adopt Absen A5C+ calibration technology, A5C+ pixel by pixel calibration technology eliminates the difference in brightness and chromaticity within and between panels, improves the uniformity of display, and reproduces flawless images. Module comes with calibration parameters.
- With black screen and partial black screen dynamic energy saving function, the dynamic energy saving mode is automatically turned on during use, which is efficient and energy saving (only supported by P1.5&P1.8).
- The product meets the EMC Class B civil level radiation requirements.
- Passed the TÜV Rheinland low blue light certification, filters out harmful blue light, and protects eyes.
- The cabinet supports signal loop backup.
- The attenuation coefficient is set for a single module, so that there is no chromatic aberration after maintenance and replacement.
- The software has the function of adjusting the light and dark lines with one key.
- The calibration data can be stored in the receiving card and the module itself, and the software can read back the data from both.

Technische Spezifikation

Referenznummernx-series
ProduktfamilieIndoor
ProduktgruppeNX Series
TypObjekt (Einzelobjekt)
Veröffentlichungsdatum2025-06-19
Editionsnummer1

Links

Produkt urlhttps://www.absen.com/nx-series/

Klassifikation

BIMobject KategorieElektronisches Zubehör - Fernseher
Classifications.Uniclass2015CodePr_40_30_25_23
Classifications.Uniclass2015BeschreibungDisplay screens
Klassifizierung40 62 43
Format2014TitelLarge Display Screens
OmniClassNummer23-19 11 25
OmniClassTitelDisplay Screens
