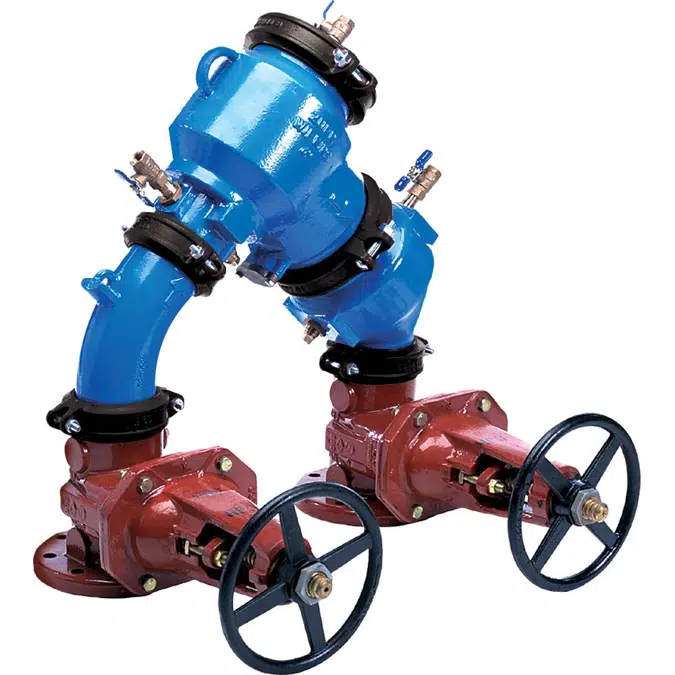

Wilkins 450 Double Check Backflow Preventer, N-Pattern, 2-1/2" to 10", Lead-Free*

Spezifikation

Spezifikation

• The Double Check Valve Backflow Preventer shall be certified to NSF/ANSI 61, ASSE® Listed 1015, and supplied with full port gate valves. The main body and access cover shall be epoxy coated ductile iron (ASTM A 536 Grade 4), the seat ring and check valve shall be NORYL™, the stem shall be stainless steel (ASTM A 276) and the seat disc elastomers shall be EPDM. Center stem guided design shall incorporate two torsion springs to bias the check in the closed position. The checks shall be accessible for maintenance without removing the device from the line. The Double Check Valve Backflow Preventer shall be a ZURN WILKINS Model 450.

Technische Spezifikation

Technische Spezifikation

• Referenznummerzurn-450
• ProduktfamilieBackflow Preventers
• ProduktgruppeDouble Check Assembly
• TypObjekt (einzelnes Objekt)
• Veröffentlichungsdatum2017-01-16
• Editionsnummer1

Links

Links

• Produkt urlhttps://www.zurn.com/products/water-control/backflow-preventers/450
• Installationinstruktionenhttps://www.zurn.com/Media-Library/web_documents/pdfs/installation/IS350-pdf.pdf
• Video Anleitunghttps://www.youtube.com/user/OneZurn
• Technische Beschreibunghttps://files.zurn.com/spec-sheets/bf-450-212-3.pdf

Verwandt

Verwandt

• Entwickelt inUSA

Klassifikation

Klassifikation

• BIMobject KategorieSanitärinstallationen - Armaturen
