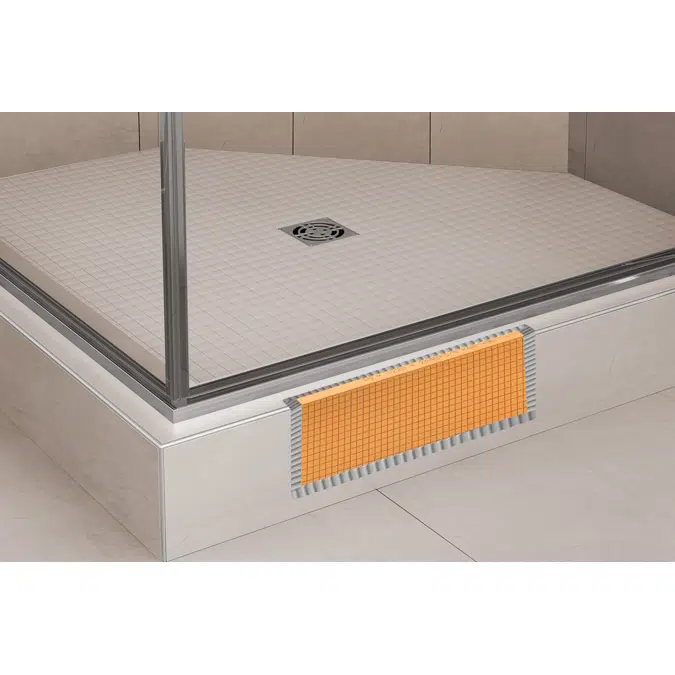

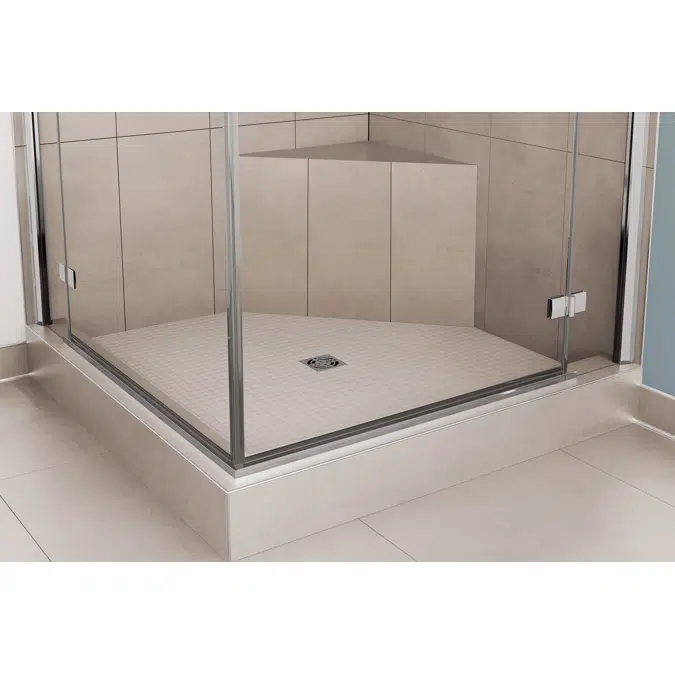

Schluter®-KERDI-BOARD-SC Prefabricated waterproof shower curb

Function:

Schluter®-KERDI-BOARD-SC is a prefabricated shower curb, made of KERDI-BOARD, for use in conjunction with the Schluter®-Shower System. KERDI-SHOWER-SC is waterproof and ready for tile, leaving only sealing of joints and corners to complete waterproofing. The curb can be used in conjunction with KERDI-SHOWER-T/-TS/-TT shower trays or mortar bases and is available in three sizes, 38" x 6" x 4-1/2" (97 x 15 x 11.5 cm), 48" x 6" x 4-1/2" (122 x 15 x 11.5 cm) and 60” x 6” x 4-1/2” (152 cm x 15 cm x 11.5 cm).

Installation:

1. Apply Schluter-SET, Schluter-ALL-SET, Schluter-FAST-SET, or unmodified thin-set mortar to the floor and to the edge of the shower base and walls using a 1/4" x 3/8" (6 mm x 10 mm) square- or U-notched trowel.

2. Press the curb firmly into place. Check the underside of the curb to ensure that full coverage and support is achieved.

3. Seal the curb to the shower base and walls using KERDI-BAND waterproofing strips and KERDI-KERECK preformed waterproofing corners.

For complete installation guidelines and warranty criteria for shower applications, please download the Schluter®-Shower System Installation Handbook below.

Keywords: Shower curb, shower system, Schluter Systems, tile substrate
