    Modular Pallet Rack

    Modular pallet racks are perfect for storing items in a densely packed, efficient rack. The adjustable pallets slot directly into the uprights, eliminating the need for beams set at specific heights.

    Standard sizes
    Widths: 30", 36", 42", 48", 52", 72", 96"
    Depths: 30", 36", 42", 48"
    Heights: 10' 4 5/8", 12' 4 5/8", 16' 4 5/8", 20' 4 5/8", 24' 4 5/8"

    • Frequently used in manufacturing settings to heavy store dies and molds, or military facilities for storing unit gear and equipment
    • Adjustable pallets eliminate empty air space between levels
    • Can be paired with an automatic retrieval gantry to eliminate the need for forklifts

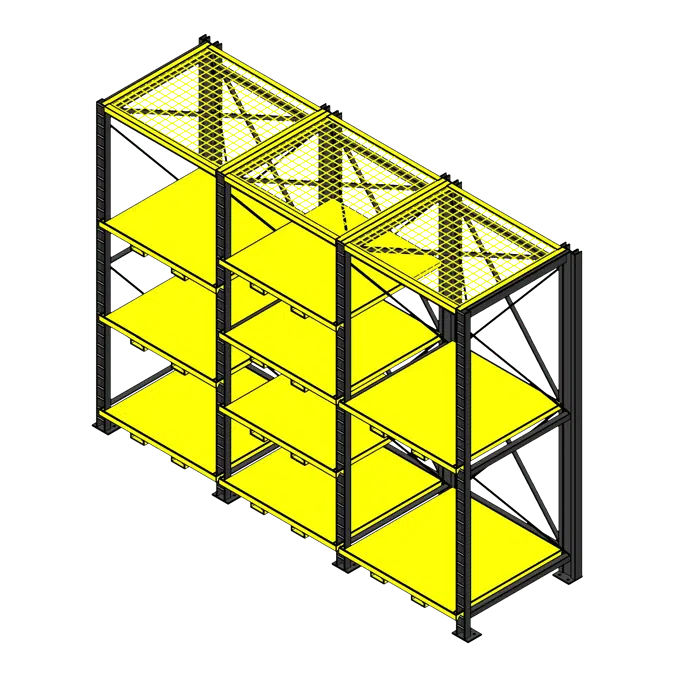

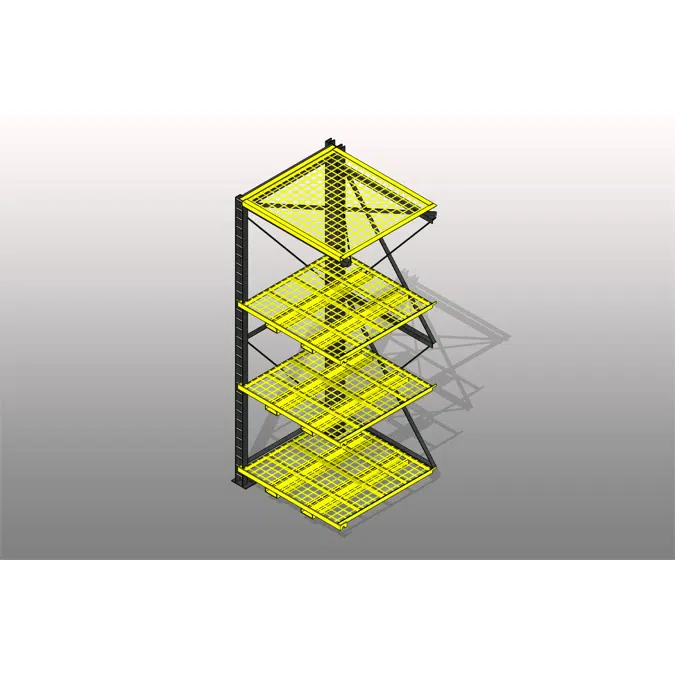

    This family is designed to work as a system with the heavy-duty pallet family and the automatic pallet retrieval gantry. To use this family, insert it into your project from the Fetch app and click to place. Use the parameters in the property window to select the desired pallet size and upright height. To chain units together, check the MODIFY_Adder box and place more shelving units side by side. Other options include the continuous top shelf, solid or mesh (flow-through) pallets, and the number of pallets shown in the rack.
    Specifikace
    • Pallets
      • Outer frame of 1/4" impact resistant steel
      • Top plate minimum 14 gauge steel
      • Top plate is pre-punched to accept bolt-on options
      • Full-length fork pockets run front to back
      • Flat bar hooks and tabs lock into rack frame uprights
      • Pallet dimensions refer to the actual surface utilization
      • Pallet sizes
        • 30" x 30"
        • 36" x 30"
        • 36" x 36"
        • 42" x 36"
        • 42" x 42"
        • 48" x 48"
        • 52" x 48"
        • 72" x 48"
        • 96" x 48"
      Racking
      • Uprights made of 10 gauge steel and measure 3 3/4" wide by 2 1/2" deep
      • Front uprights use 1/2" diameter bolts at 4" intervals to lock pallets in place
      • Back uprights use 2 1/2" slots to receive pallet tabs
      • Cross bracing includes 2"x2" L bracket steel angles and 1 1/2" steel bar diagonals
      • Each 3/8" thick base plate include two holes for 5/8" anchor bolts
      • Each section or bay is seismically rated up to 25000 lbs.
    Technická specifikace
    • Jedinečná ref. hodnotaSSG_Shelving_Pallet_Rack_Modular_PCS
    • TypObjekt
    • Datum zveřejnění2023-10-07
    • Číslo vydání1
    Související
    • Hlavní materiálOcel lakovaná
    Klasifikace
    • Kategorie objektu BIMNábytek - Police & Skladování
    • Klasifikace IFCNábytek
    • Kód CSI MasterFormat 201410 56 29.16
    • Název CSI MasterFormat 2014Pallet Storage Racks
    • Kód CSI UniFormat IIE1030
    • Název CSI UniFormat IIVehicular Equipment
