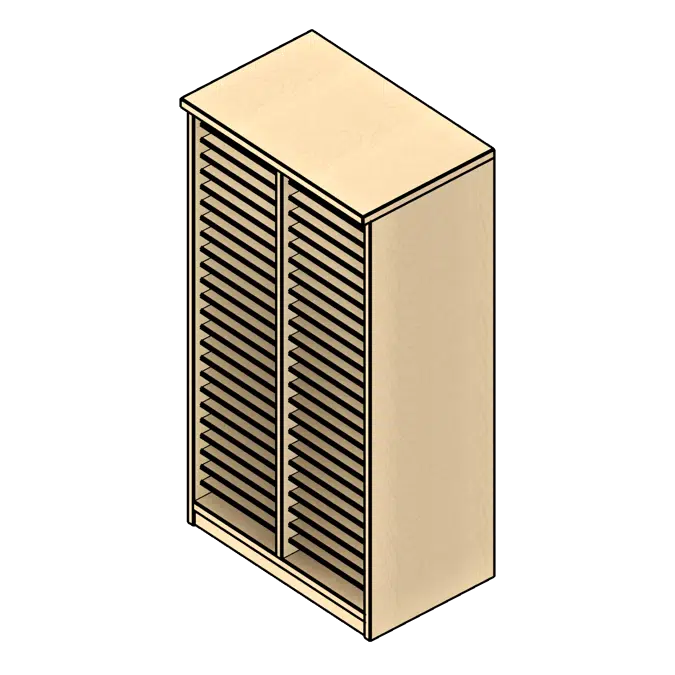

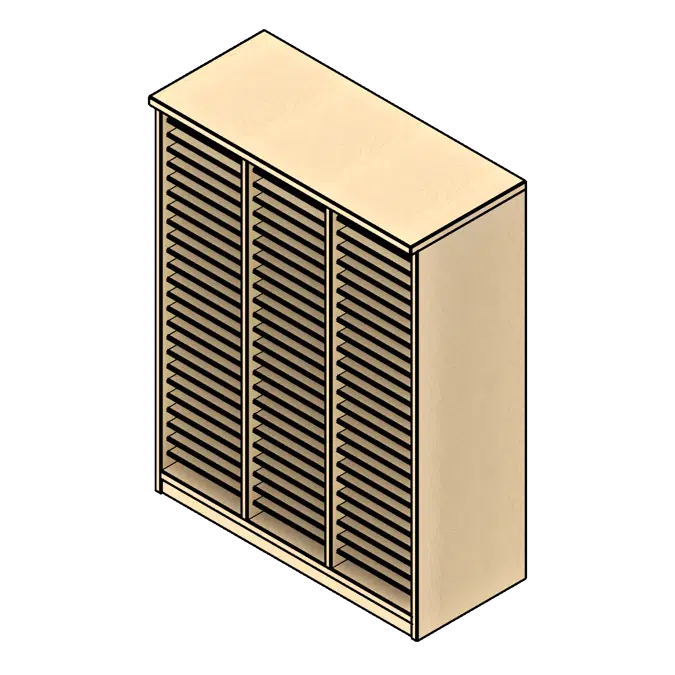

Stationary Laminate Folio Storage

Stationary Folio Storage Cabinet

Standard sizes
Widths: 28", 41", 54"
Depths: 18"
Heights: 54"

Ideal for educational and institutional settings.
2" tall toe-kick for stationary functionality.
Customizable shelving for music folder organization.

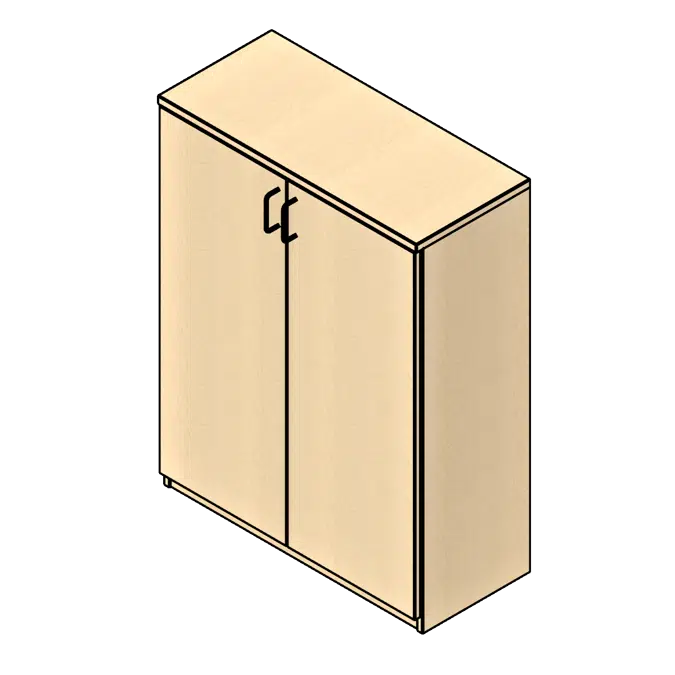

Optional solid laminate doors for enhanced security.

This product distinguishes itself from other storage solutions with its focus on folio storage, providing dedicated shelving specifically for sheet music folders. Constructed with thermally fused laminate, it ensures durability and a sleek aesthetic, compatible with a variety of interior designs. The cabinet features high-performance industrial-grade particleboard and medium density fiberboard (MDF) for robust construction. It includes heavy-duty, five-knuckle hinges and solid laminate doors that offer both security and aesthetic value. The locker seamlessly integrates into existing architectural plans with flexibility in dimensions and color options selected from standard offerings. As a Revit family, it enables architects and designers to incorporate this functional and aesthetically pleasing storage unit into their BIM models, ensuring precise planning and execution in music-oriented spaces.

Specifikace

Construction:
- Thermal Fused Laminate for exposed surfaces, color selected from standard offerings.
- 1-inch MDF core shelves with color matched edgebanding finish and full bull nose front.
- High-performance industrial grade particleboard, 45-pound density.
- 3mm nominal PVC edge banding with a radius of 1/8” on edges and corners.
- Fixed shelves securely fastened to end panels or dividers.
- Doors mounted flush between end panels and vertical dividers.
- Factory-applied finished panel for cabinet base/toe kick.
- Four steel bracket/pin heavy-duty levelers with finish boot, factory fastened.
Hardware:
- Heavy-duty five-knuckle hinges, 2 3/4 inches, ANSI/BHMA A156.9 Grade 1 compliant.
- Simple wire design pulls.
- Specialty hardware as required for specific products, approved by the architect.
Applications:
- Music Area Casework: Ideal for band, symphony, and choir storage needs.
- Locker Shelving: Suitable for storing sheet music folders.
